#4205

Smart MUTT® X Pro Edition (7-Way Round/Flat, 6-Way Pin)
Mobile Universal Trailer Tester

A Mobile, Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

(Supersedes the #9004M and #9007M Smart MUTT®)

Find A Distributor
For International Customers
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us here.

International Sales

To place an order from outside of the United States, please call 888-786-7899 or email us here

Price $1,275.00
3 Year Warranty

In Stock
Lead Time: 2-3 Weeks

Description

(Supersedes the #9004M and #9007M Smart MUTT®)

A Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

Built to facilitate a one-man testing operation, the Smart MUTT® X Pro Edition reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. Designed to be used on five trailer-connection types (7-way flat (spade), 7-way round, 6-way round, 5-pin and 4-pin connections), the SMART MUTT® X Pro Edition features a rugged cart body for testing lights and electric brakes on commercial and light-duty trailers.

Features and Benefits:

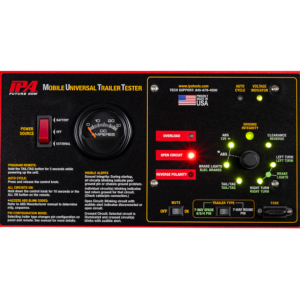

ELECTRICAL TESTING(12/24V Operation)

  • Remote-controlled operation of lights and electric brakes
  • One-man testing saves time and money
  • Automatic ground, cross, open, overload and short circuit
    fault indicators
  • Chase down short circuits without blowing fuses with
    integrated Pulsar® mode
  • Ammeter 0-20 amps

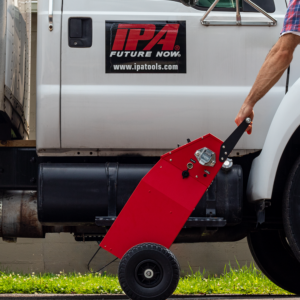

  • Rugged cart body for mobility in and outside the shop

Includes:
• (2) 12-Button Remote Control (#MUT-RM12-4A) • 5′ 7-Way Cable • 10 Amp Smart Charger (12v DC) (#KCHG-121001) • 3-Way Trailer Adapter (#8000) • Rain Cover

Reviews

There are no reviews yet.

Be the first to review “Smart MUTT® X Pro Edition (7-Way Round/Flat, 6-Way Pin)
Mobile Universal Trailer Tester

Your email address will not be published. Required fields are marked *

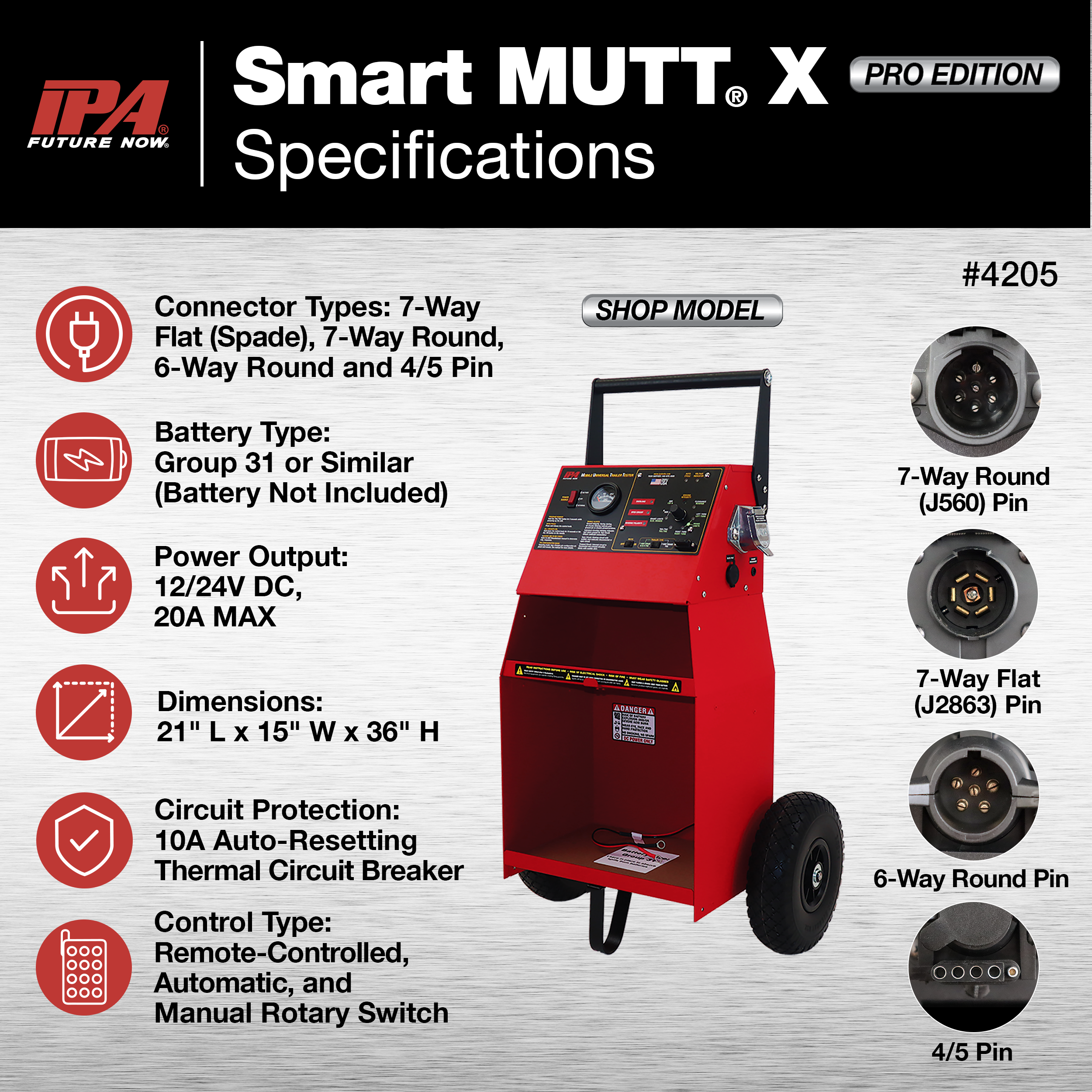

Connection Type: 7-Way Round & 7-Way Flat Pin, 6-Way Round, 5 Pin and 4 Pin (with Adapter)
Power Input: 12V DC

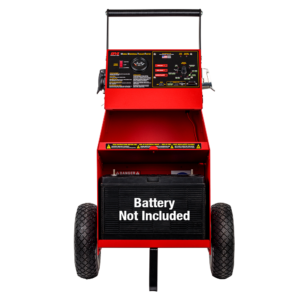

Battery Requirements (Battery Not Included): Group 31 or Similar (Not Included)
Source Output: 20A @ 12V DC
Controls: Manual, Remote, Automatic
Material: Powder-Coated Steel
Weight: 11.5 lbs.

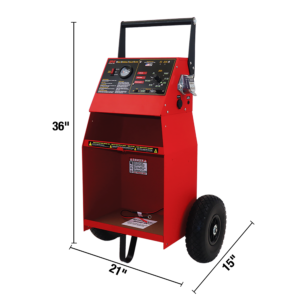

Dimensions: 12" L x 9.5" W x 9" H
Warranty: 3-Year Limited Warranty
CoO: USA
