Smart MUTT® X (7-Way Round/Flat, 6-Way Pin)
Mobile Universal Trailer Tester

  1. Home
  2. Equipment
  3. Smart MUTT® X (7-Way Round/Flat, 6-Way Pin) Mobile Universal Trailer Tester
#4105

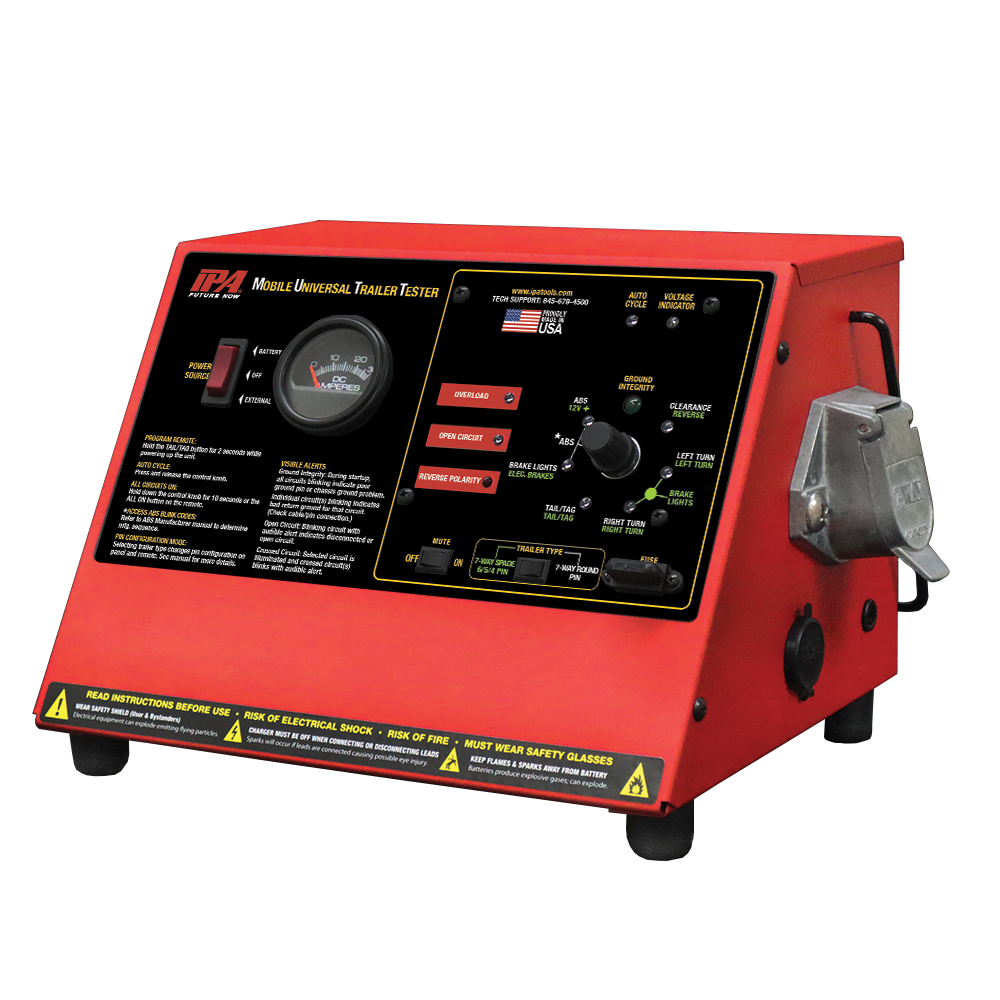

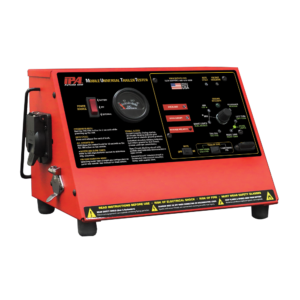

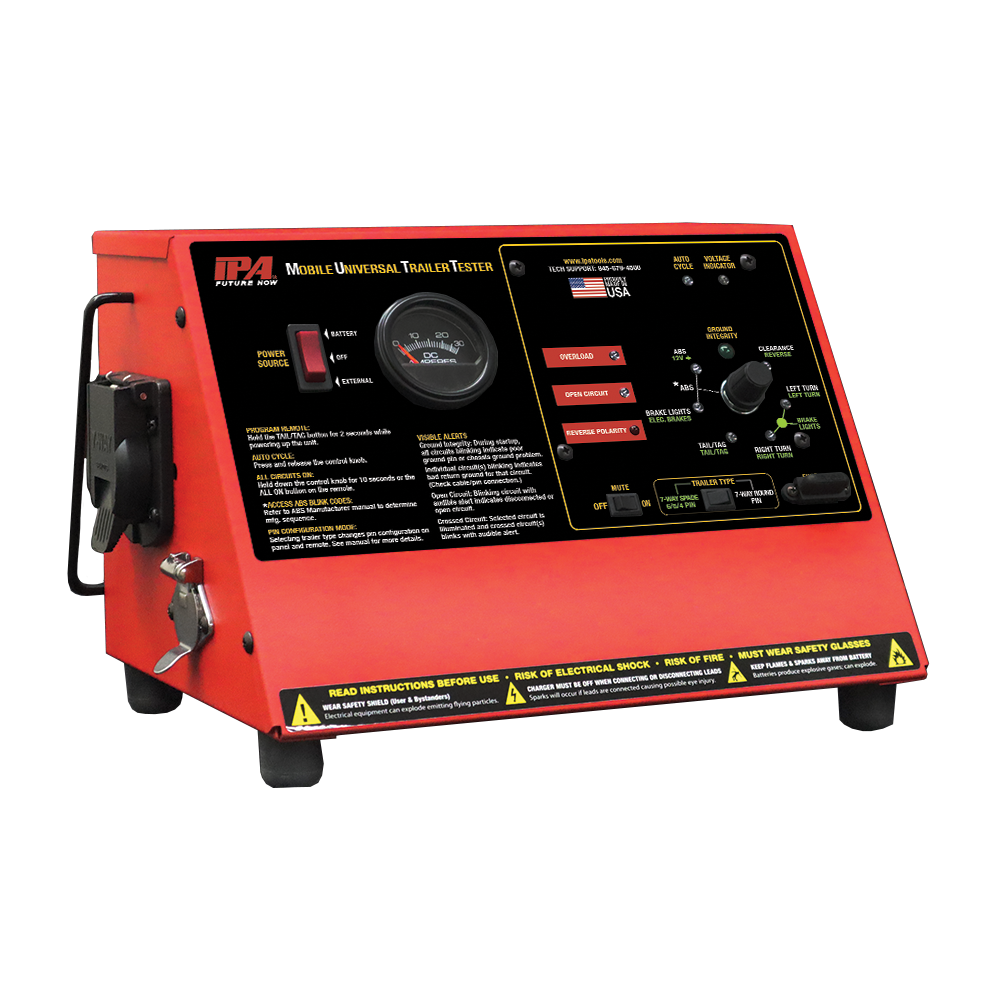

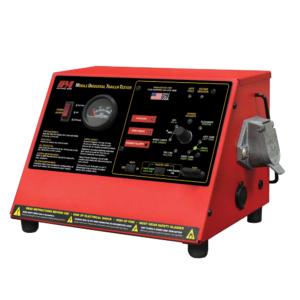

Smart MUTT® X (7-Way Round/Flat, 6-Way Pin)
Mobile Universal Trailer Tester

  • 4105_Product_Image_1
  • 4105_Product_Left Angle
  • 4105_Product_Right_Angle
  • 4100_7-Way-Flat_Action_1
  • 4105_Works_On_Image
  • 9004A_Smart_MUTT_Product_8000
  • 9004A_Smart_MUTT_Product_CHR0001_Chargerplug_1
  • ipa_3_way_trailer-adapter_1
  • 9007a_smart_mutt_round_action_battery_1
#4105

Smart MUTT® X (7-Way Round/Flat, 6-Way Pin)
Mobile Universal Trailer Tester

A Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

(Supersedes the #9004A Smart MUTT®)

Find A Distributor
Distributor Information

Innovative Products of America® Incorporated is an OEM (Original Equipment Manufacturer) who only sells through traditional three step distribution. Our products are available through most professional tool distributors, AG/construction equipment dealers, farm supply stores, MRO and industrial supply companies.
To locate a distributor near you, please call 888-786-7899 or email us.

Price $795.00
3 Year Warranty

Preorder Today
Launch Date: 5/23/22

Description

(Supersedes the #9004A Smart MUTT®)

A Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

Built to facilitate a one-man testing operation, the Smart MUTT® X reduces guesswork and inspection time to prevent

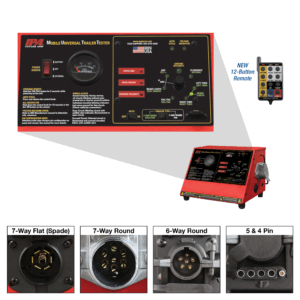

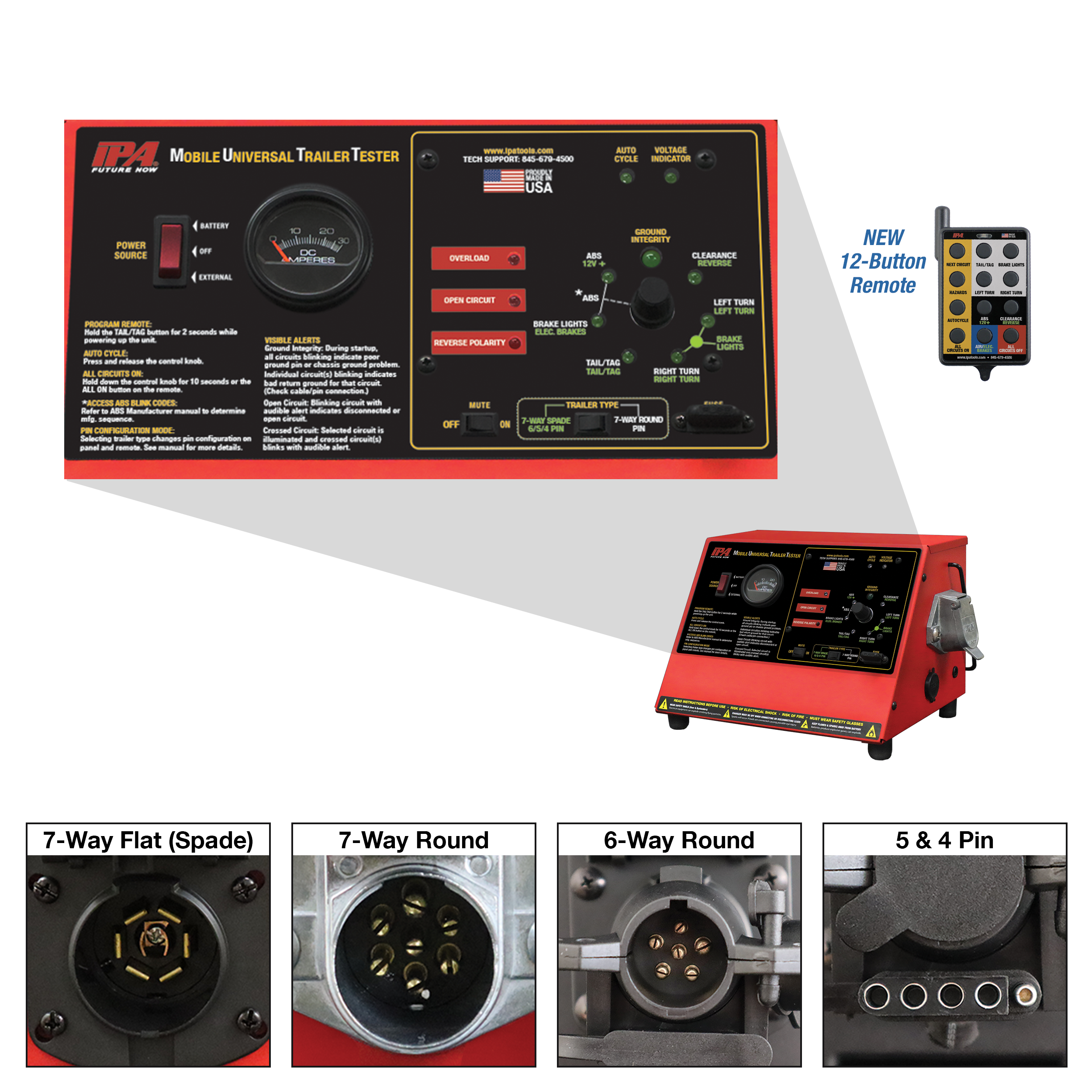

failures that lead to expensive road calls and citations. Designed to be used on five trailer connection types (7-way flat
(spade), 7-way round, 6-way round, 5 pin and 4 pin connections), the SMART MUTT® X tests lights and electric brakes on commercial and light-duty trailers.

Features and Benefits:

ELECTRICAL TESTING(12/24V Operation)

  • Power lights: Manually, All-On, Auto Scan, or Remote Control
  • Audible and visual alerts: cross, open, overloaded and short circuit indication
  • Pulsar® mode allows diagnostic repair
  • Advanced trailer wiring diagnostics
  • Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
  • Analog Ammeter Readout 0-20 Amps
  • Remote control allows for one-man testing

Includes:

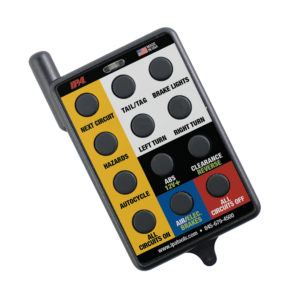

• 12-Button Remote Control (#MUT-RM12-4A) • 500mA Battery Charger (#CHR0001) • 3-Way Trailer Adapter (#8000)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

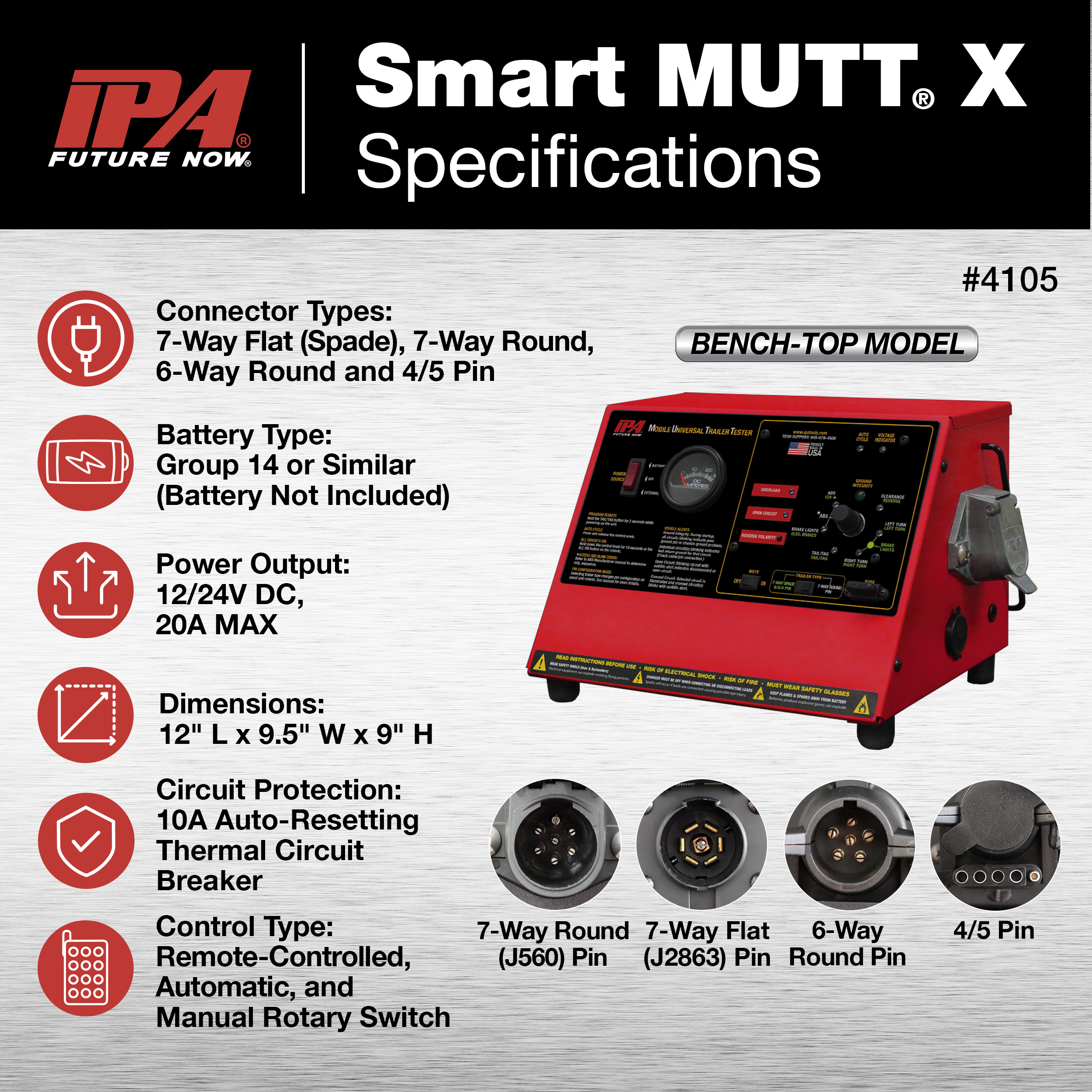

Connection Type: 7-Way Flat, 7-Way Round, 6-Way and 4/5 Pin
Power Input: 12/24V DC
Battery Requirements (Battery Not Included): Yuasa #YTX14 or Similar Recommended
Source Output: 20A @ 12/24V DC
Controls: Manual, Remote, Automatic
Material: Powder-Coated Steel
Weight: 10 lbs.

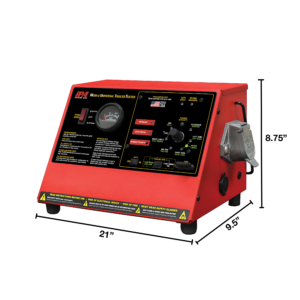

Dimensions: 12" L x 9.5" W x 9" H
Warranty: 3-Year Limited Warranty
CoO: USA
