Super MUTT® PRO Edition W/ Extended Cable/Hose Package
Mobile Universal Trailer Tester

  1. Home
  2. Equipment
  3. Super MUTT® PRO Edition W/ Extended Cable/Hose Package Mobile Universal Trailer Tester
#9008-DLEXT

Super MUTT® PRO Edition W/ Extended Cable/Hose Package
Mobile Universal Trailer Tester

#9008-DLEXT

Super MUTT® PRO Edition W/ Extended Cable/Hose Package
Mobile Universal Trailer Tester

Advanced, remote-controlled diagnostic trailer tester with extended cables for 7-way round pin connections.

Find A Distributor
Distributor Information

Innovative Products of America® Incorporated is an OEM (Original Equipment Manufacturer) who only sells through traditional three step distribution. Our products are available through most professional tool distributors, AG/construction equipment dealers, farm supply stores, MRO and industrial supply companies.
To locate a distributor near you, please call 888-786-7899 or email us.

If you do not have access to a local distributor, you may buy directly from our website.

Price $2,262.43

Description

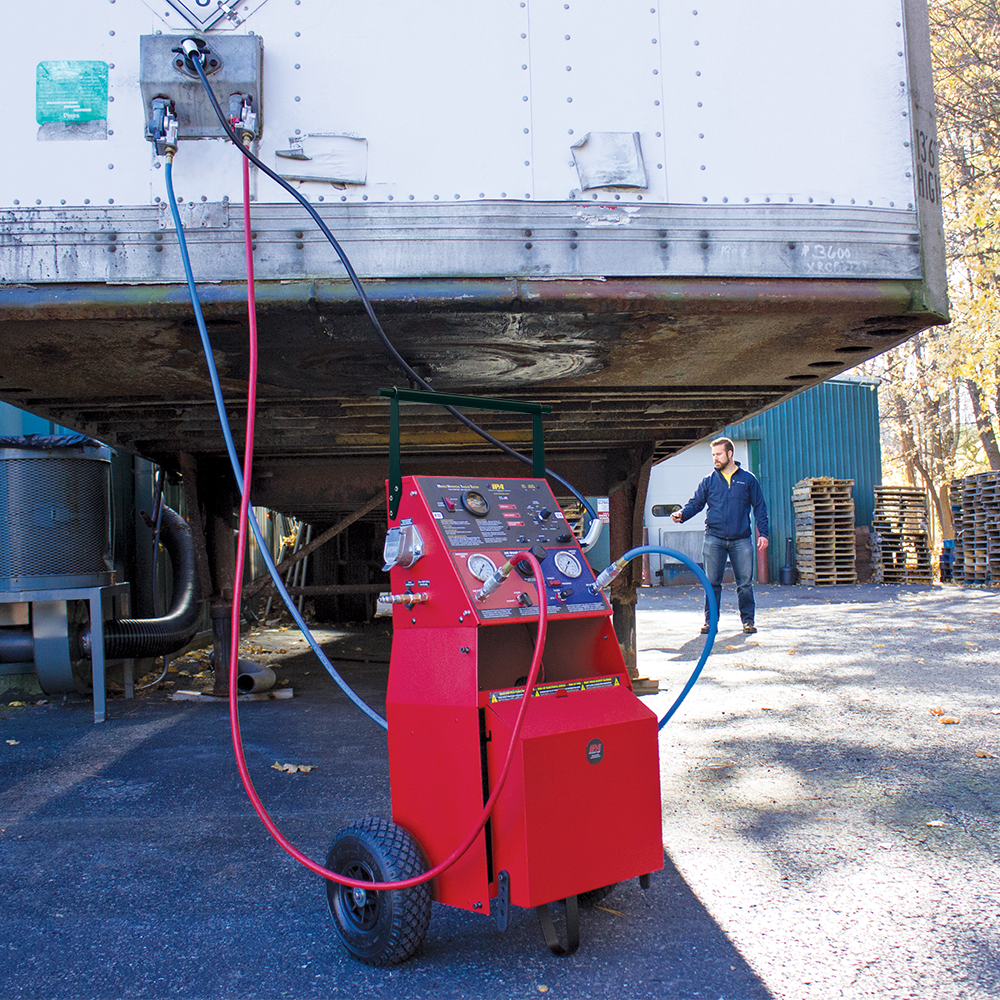

Quickly Troubleshoot Lighting and Air Brake Systems with the Industry’s Leading Mobile Universal Trailer Tester

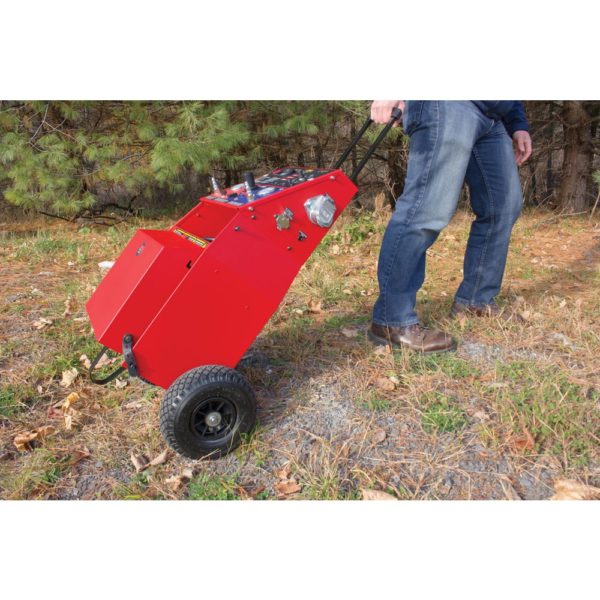

This system is the one used by most professional service companies and nationwide fleets today. Ideal for in the shop, field or storing in a service truck.

The 12 Button Remote provides every function at a range greater than 200 ft.



Features and Benefits:

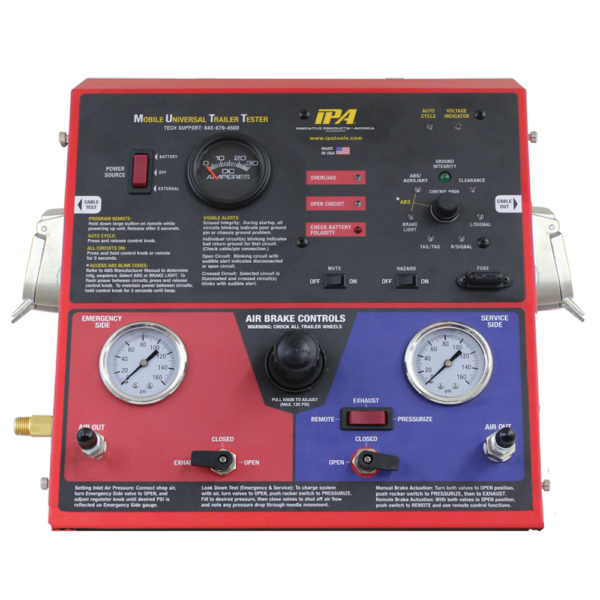

ELECTRICAL TESTING(12/24 Volt Operation)

  • Power lights: Manually, all-on, auto scan, or by remote control
  • Audible and visual alerts: cross, open, overloaded and short circuit indication
  • Pulsar® mode allows diagnostic repair
  • Advanced trailer wiring diagnostics
  • Amperage readout and range (0-20 amps)
  • Cable testing
  • Ground failure detection: differentiates between wire and chassis ground

AIR BRAKE TESTING

  • Performs leak-down test on service and emergency lines
  • Remote control allows observation of slackers to measure and adjust pushrods
  • Real-time, repetitive brake activation to find developing problems and verify leaking servo cans

REMOTE CONTROL

  • (2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
  • Sync multiple (12) remotes to one unit

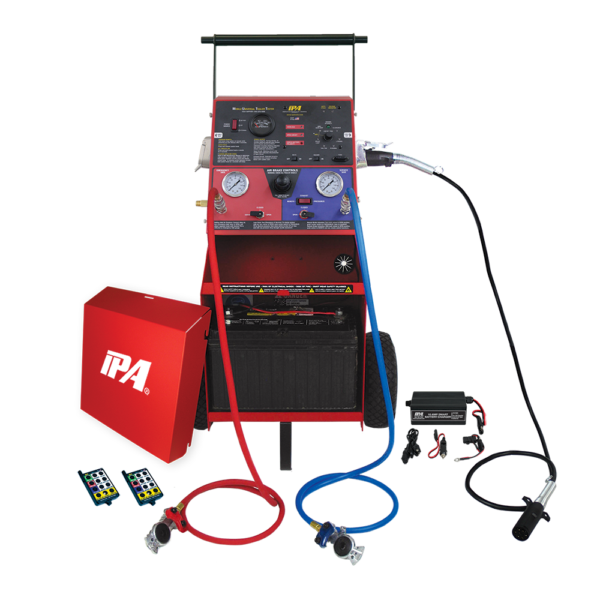

Includes:

• (2x) 12-Button Remote Control (#MUT-RM12) • 12′ 7-Way Cable (7900K-1-12) • 12′ Red Hose with Gladhands with Extended Handles (7900AP-12RED-FX) • 12′ Blue Hose with Gladhands with Extended Handles (7900AP-12BLU-FX) • 10-Amp Smart Battery Charger (#CHG-10AMP-AS) • Face/Battery Shield (#9008-4R) • Rain Cover (#CVR-0001)

Read Our Full Trailer Testing Blog Here

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Connection Type: 7-Way Round Pin
Power Input: 12/24V DC
Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
Source Output: 20A @ 12V DC
Max Operating Pressure: 120 psi
Air Input: ¼" npt (120 psi max.)
Controls: Manual, Remote, Automatic
Tires: 10" Pneumatic
Material: Powder-Coated Steel
Weight: 56 lbs.
Dimensions: 21" L x 15" W x 35" H
Warranty: 3-Year Limited Warranty
CoO: USA

We value your business. Have a question or need technical support? Call 845-679-4500 or email [email protected] When contacting us, please be sure to reference the part number or product series you're interested in.
