Super MUTT® Base Model
Mobile Universal Trailer Tester

  1. Home
  2. Equipment
  3. Super MUTT® Base Model Mobile Universal Trailer Tester
#9008-SE

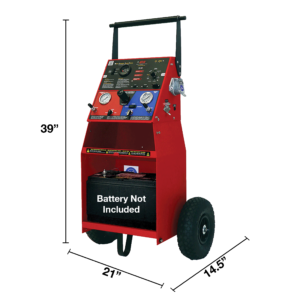

Super MUTT® Base Model
Mobile Universal Trailer Tester

  • 9008SE_Product_W_Accessories_1
  • 9008DL_Faceplate
  • 9008-SE_Product_Dimensions
  • ipa_super_mutt_9008_action_11
  • 12_button_remote_product_1_1
  • 9007A_7round-cable
  • 7900-AP
  • 9102_Connection_Type_Image
#9008-SE

Super MUTT® Base Model
Mobile Universal Trailer Tester

Advanced, remote-controlled diagnostic trailer tester for 7-way round pin connections.

Find A Distributor
For International Customers
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us here.

International Sales

To place an order from outside of the United States, please call 888-786-7899 or email us here

Price $1,953.00
3 Year Warranty
30-Day Money Back Guarantee

Current Lead Time: 2 weeks

Description

Quickly Troubleshoot Lighting and Air Brake Systems with the Industry’s Leading Mobile Universal Trailer Tester.

This intuitive and durable design is ideal for both on and off-site commercial trailer testing and repairs.

Features and Benefits:

ELECTRICAL TESTING(12/24 Volt Operation)

  • Power lights: Manually, all-on, auto scan, or by remote control
  • Audible and visual alerts: cross, open, overloaded and short circuit indication
  • Pulsar® mode allows diagnostic repair
  • Advanced trailer wiring diagnostics
  • Amperage readout and range (0-20 amps)
  • Cable testing
  • Ground failure detection: differentiates between wire and chassis ground

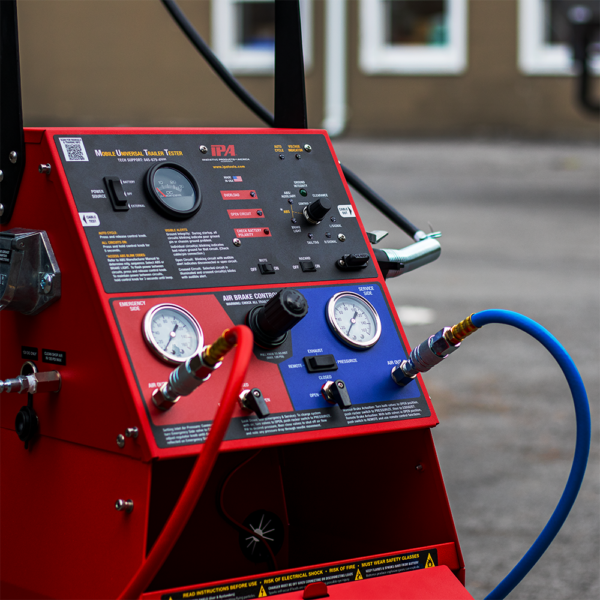

AIR BRAKE TESTING

  • Performs leak-down test on service and emergency lines
  • Remote control allows observation of slackers to measure and adjust pushrods
  • Real-time, repetitive brake activation to find developing problems and verify leaking servo cans

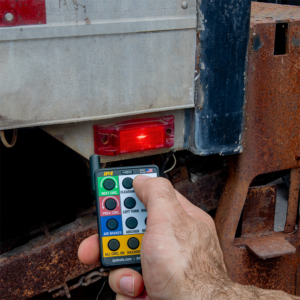

REMOTE CONTROL

  • 12-button remote control tests all trailer electric circuitry and air brake actuation, 200 ft. range
  • Sync multiple remotes to one unit

Includes:

• 12-Button Remote Control (#MUT-RM12) • 5′ 7-Way Cable (#7900K-1) • 8′ Red Hose with Gladhands (#7900AP-8RD-AS) • 8′ Blue Hose with Gladhands (7900AP-8BL-AS)

Read Our Full Trailer Testing Blog Here

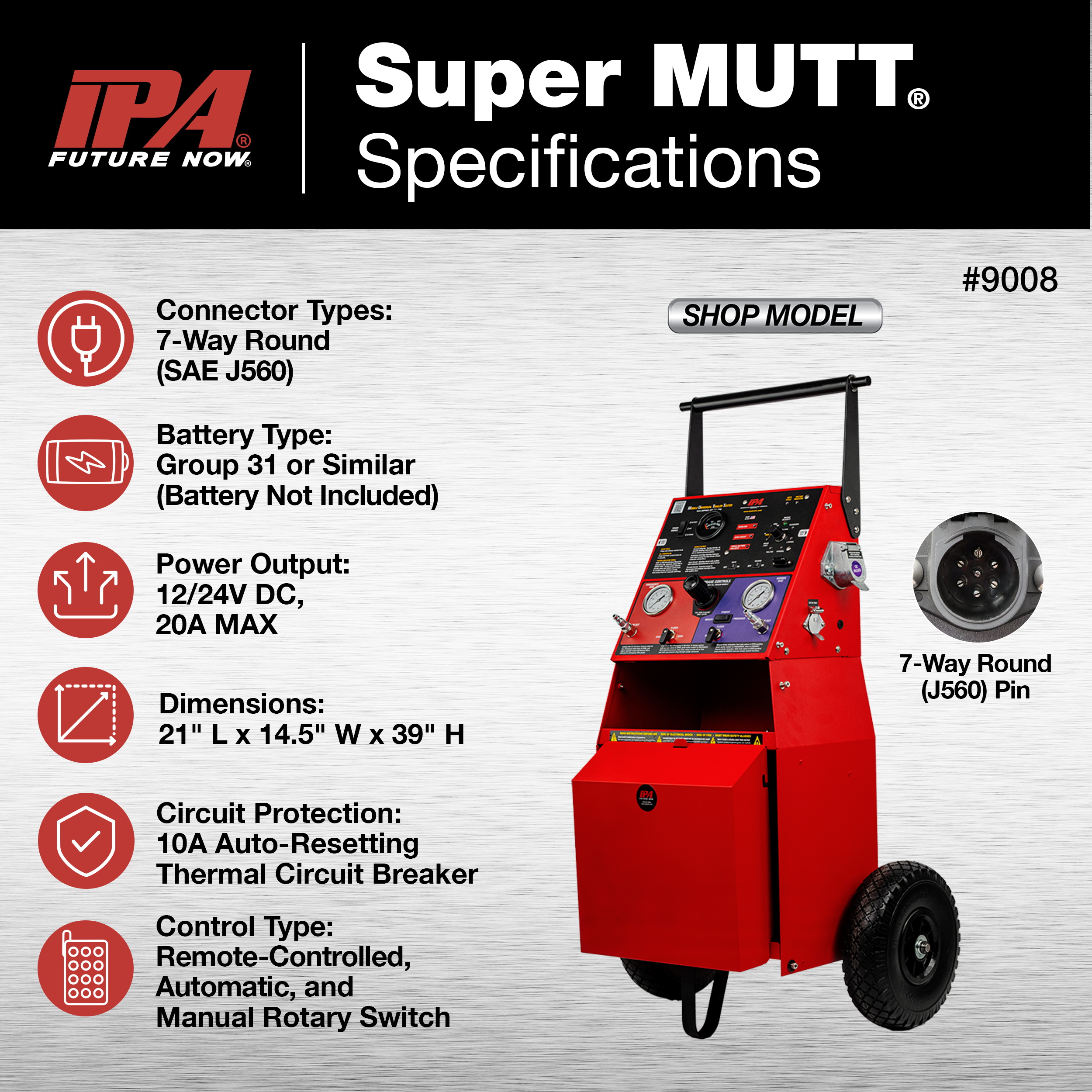

Connection Type: 7-Way Round Pin
Power Input: 12V DC
Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
Source Output: 20A @ 12V DC
Max Operating Pressure: 120 psi
Air Input: ¼" npt (120 psi max.)
Controls: Manual, Remote, Automatic
Tires: 10" Pneumatic
Material: Powder-Coated Steel
Weight: 56 lbs.
Dimensions: 21" L x 15" W x 35" H
Warranty: 3-Year Limited Warranty
CoO: USA

#
