Mobile Smart MUTT® PRO Edition (7-Way Round Pin)
Mobile Universal Trailer Tester

  1. Home
  3. Equipment
  5. Mobile Smart MUTT® PRO Edition (7-Way Round Pin) Mobile Universal Trailer Tester
#9007M

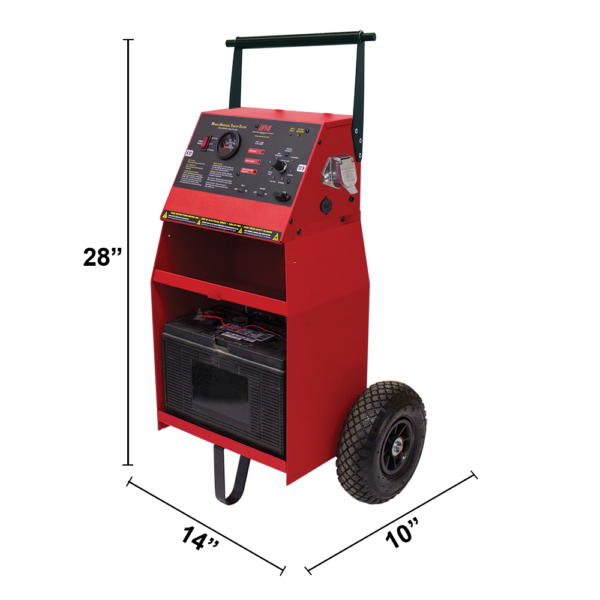

Mobile Smart MUTT® PRO Edition (7-Way Round Pin)
Mobile Universal Trailer Tester

#9007M

Mobile Smart MUTT® PRO Edition (7-Way Round Pin)
Mobile Universal Trailer Tester

Remote-controlled, diagnostic trailer tester for commercial trailer lights and ABS.

    Description

    The Mobile Smart MUTT® with Pulsar® Mode Makes Trailer Testing a One-Man Operation

    Test all trailer electrical systems in a fraction of the time while reducing guesswork that could lead to expensive road calls and citations.



    Features and Benefits:

    ELECTRICAL TESTING (12/24V OPERATION)

    • Power lights and electric brakes: manually, all-on, auto scan, or by remote control from over 200 ft. away
    • Audible and visual alerts: cross, open, overloaded and short circuit indication
    • Trailer wiring and circuit testing
    • Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
    • Amperage readout and range (-/ 20 amp range)
    • Ground failure detection differentiates between wire and chassis ground
    • Remote control allows for one-man testing

    ABS TESTING

    • Produces ABS blink codes to test for ABS faults via Auxiliary and Brake Circuit activation (i.e. Meritor/ Wabco, Bendix® TABS-6 and Haldex systems)

    REMOTE CONTROL

    • 12-button and (2x) 3-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
    • Sync multiple (12) remotes to one unit

    Includes:
    • (1) 12-Button Remote Control (#MUT-RM12) • (1) 3-Button Remote Control (#MUT-RM3-9007A) • 5′ 7-Way Cable (#7900K-1) • 10-Amp Smart Battery Charger (#KCHG-121001) • Rain Cover (#CVR-0001)

    Read Our Full Trailer Testing Blog Here

    Connection Type: 7-Way Round Pin
    Power Input: 12/24V DC
    Battery Requirements: Group 31 or Similar (Battery Not Included)
    Source Output: 20A @ 12/24V DC
    Controls: Manual, Remote, Automatic
    Material: Powder-Coated Steel
    Weight: 40 lbs.
    Dimensions: 14" L x 10" W x 28" H
    Warranty: 3-Year Limited Warranty
    CoO: USA

    We value your business. Have a question or need technical support? Call 845-679-4500 or email info@ipatools.com. When contacting us, please be sure to reference the part number or product series you're interested in.
    #
    7900K-48

    10″ Pneumatic Wheel

    Replacement part (1 Tire) for the following parts: #9060, #9060C, #9062, #9062C, #9004M, #9007M, #9008-DL, #9008-SE, #9049M, #M2000, the DTP series, and the #9046 series.

    More Info
    #
    7900K-49

    Telescoping Handle

    Replacement Retractable Luggage Handle for MUTT® Models #9008-DL, #9008-SE, #M2000, #9004M, and #9007M.

    More Info

    Innovative Products of America® Incorporated is an OEM (Original Equipment Manufacturer) who only sells through traditional three step distribution. Our products are available through most professional tool distributors, AG/construction equipment dealers, farm supply stores, MRO and industrial supply companies.

    To locate a distributor near you, please call 888-786-7899 or email us.

    If you do not have access to a local distributor, you may buy directly from our website by clicking below and enabling the shopping cart.

    Enable Shopping Cart
