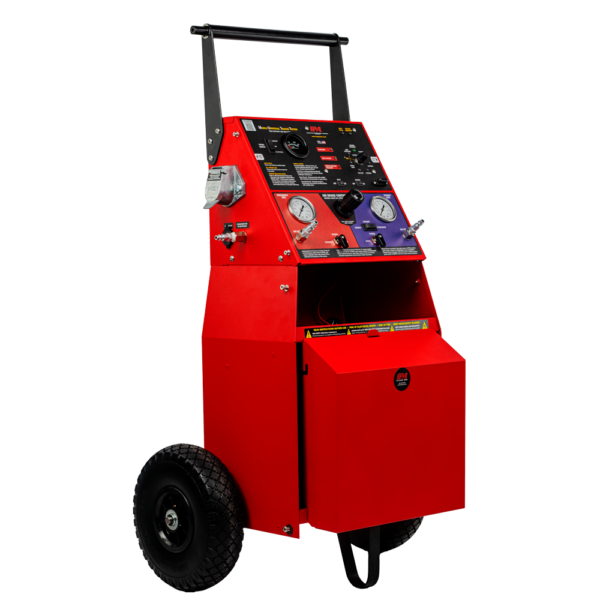

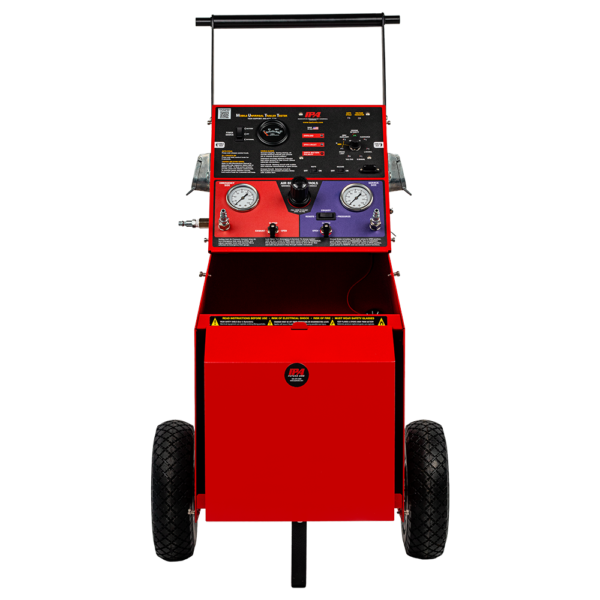

Quickly troubleshoot lighting and air brake systems with the Super MUTT® PRO Edition—a compact, rugged solution for 7-way electrical and air brake diagnostics. Engineered for heavy-duty fleets, this versatile unit combines 12/24V operation with real-time circuit analysis and dynamic brake actuation. Operates all functions remotely up to 200 feet away, making it ideal for use in yards, shops, or on the roadside. Easily detects shorts, ground faults, and wiring issues while minimizing guesswork and speeding up inspections. When testing ABS systems, the supermarket can be used to trigger blink codes. For more advanced ABS diagnostics, see the Alpha MUTT® series.

Features and Benefits:

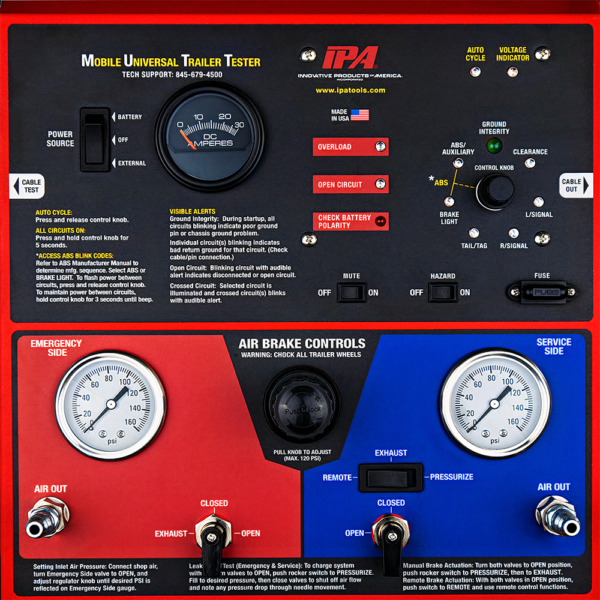

ELECTRICAL TESTING (12/24 Volt Operation)

• Advanced trailer wiring diagnostics

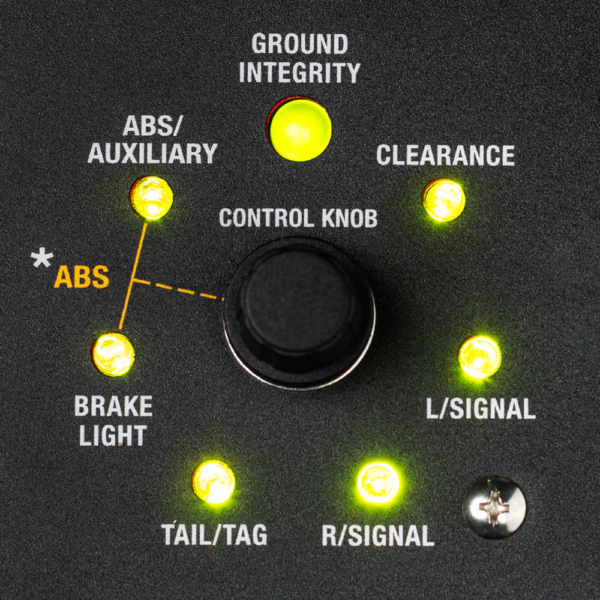

• Power lights: Manually, all-on, auto scan, or by remote control
• Automatic Fault Alerts: Cross, open, overload, and short circuit indication
• Pulsar mode allows for chasing down short circuits without blowing fuses
• Ground failure detection: Differentiates between wire and chassis ground
• Cable testing validates continuity for any 7-way round cable
• Ammeter displays: 0-20 amps

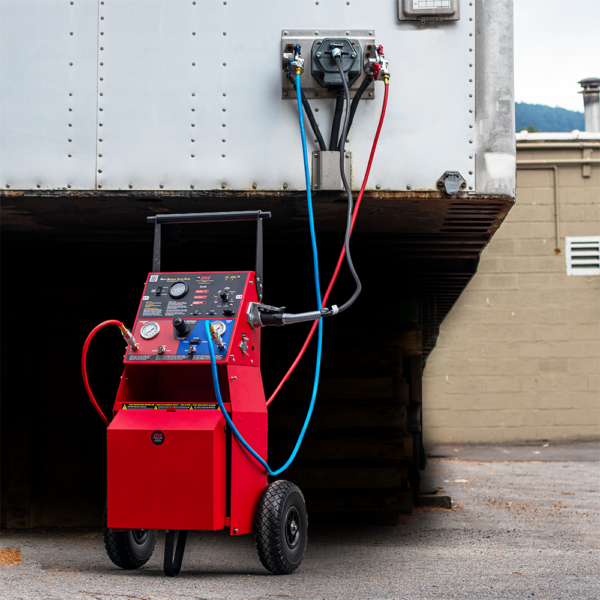

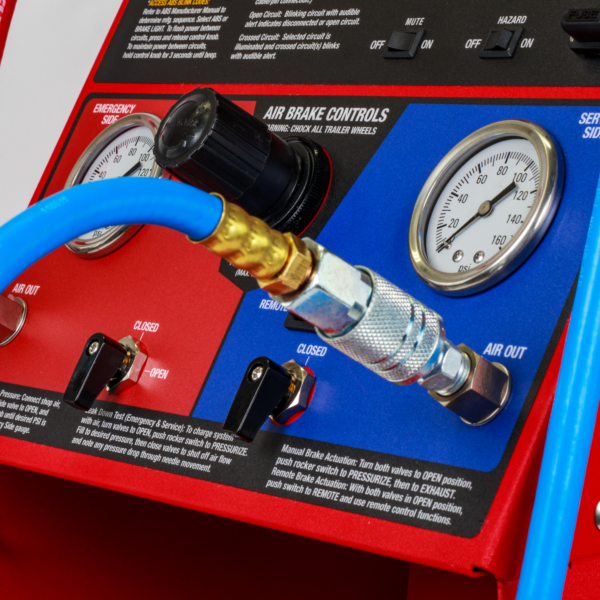

AIR BRAKE TESTING

• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Remote control allows observation of slackers to measure and adjust pushrods
• Performs leak-down tests on service and emergency lines

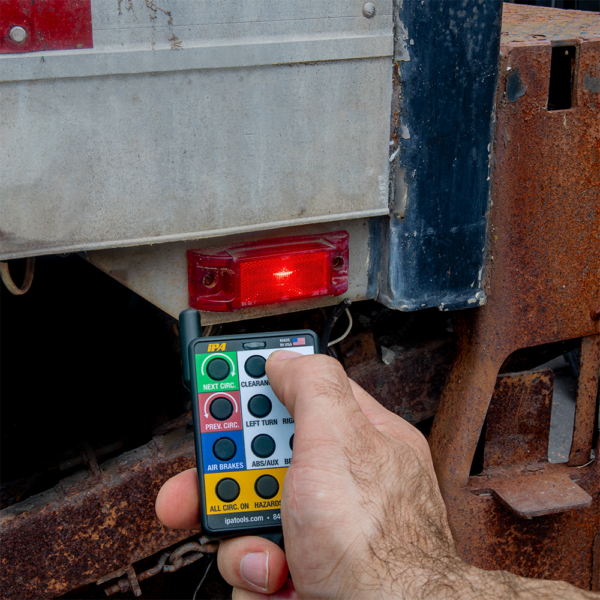

REMOTE CONTROL

• (2x) 12-button remote with 200+ ft range
• Selects individual, multiple, or all circuits at once
• Actuates service side air brakes
• Syncs multiple (12) remotes to one unit

Includes:

• (2) 12-Button Remote Controls (#MUT-RM12) • 5′ 7-Way Cable (#7900K-1) • 8′ Red Hose with Gladhands (#7900AP-8RD-AS) • 8′ Blue Hose with Gladhands (7900AP-8BL-AS) • 10-Amp Smart Battery Charger (#CHG-10AMP-AS) • Face/Battery Shield (#9008-4R) • Rain Cover (#CVR-0001)
