Mobile Smart MUTT® PRO Edition (7-Way Flat Pin)
Mobile Universal Trailer Tester

  1. Home
  2. Equipment
  3. Mobile Smart MUTT® PRO Edition (7-Way Flat Pin) Mobile Universal Trailer Tester
#9004M

Mobile Smart MUTT® PRO Edition (7-Way Flat Pin)
Mobile Universal Trailer Tester

  • 9004M_Mobile_Smart_Mutt_Product_W_Accessories_1
  • 9004M_Mobile_Smart_Mutt_Product_1
  • MUT-RM12_accessories_12Btn_Remote
  • ipa-three-way-trailer-adapter-4-and-5-product-8000
  • 121001_10amp_automatic_battery_charger_product_3_1_1
  • 9008-raincover-1

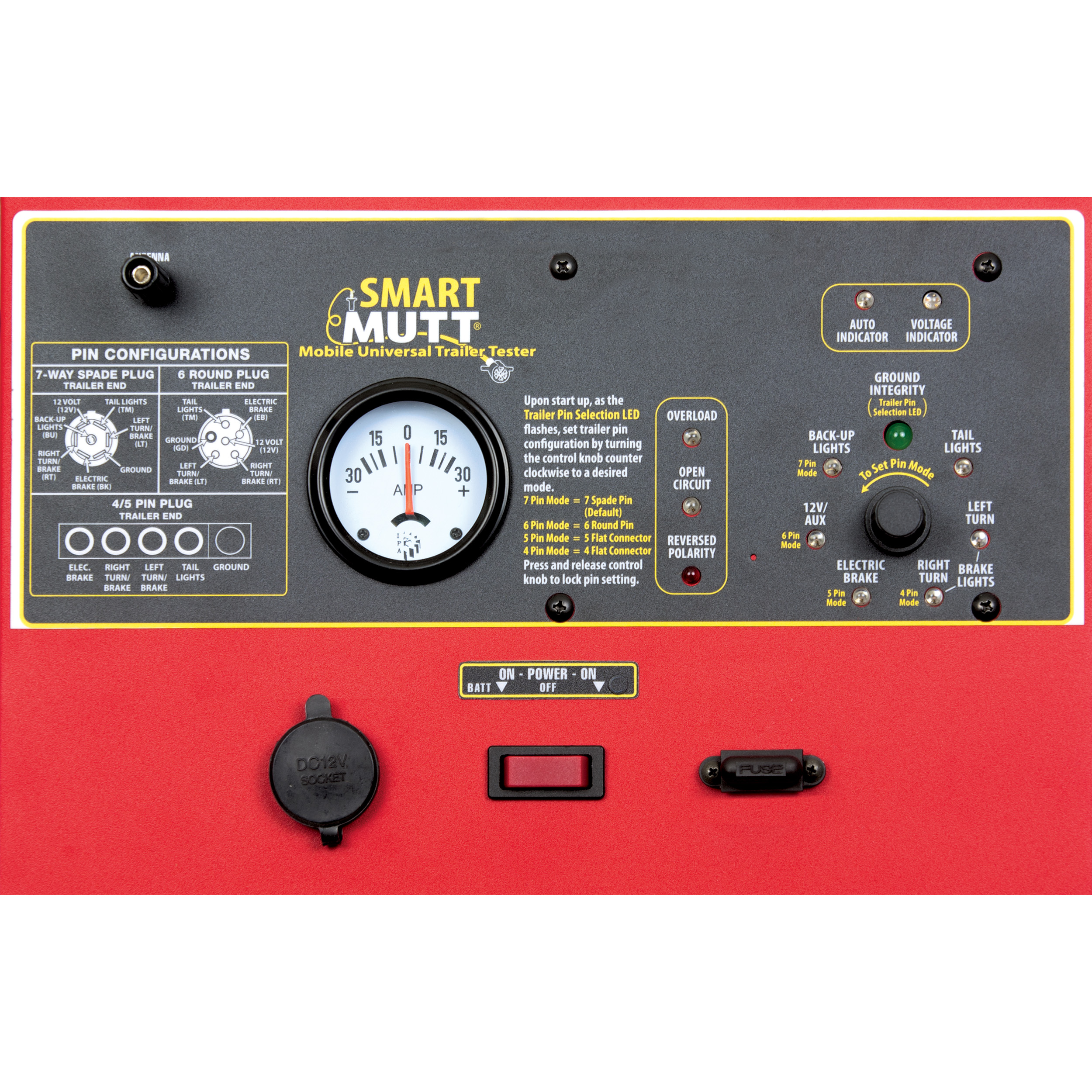

  • 9004A_Smart_MUTT_Product_Interface
  • 9101_Connection_Type_Image
#9004M

Mobile Smart MUTT® PRO Edition (7-Way Flat Pin)
Mobile Universal Trailer Tester

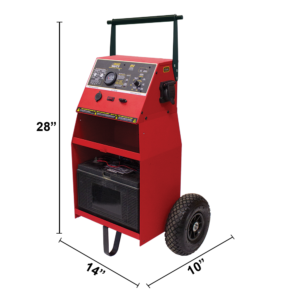

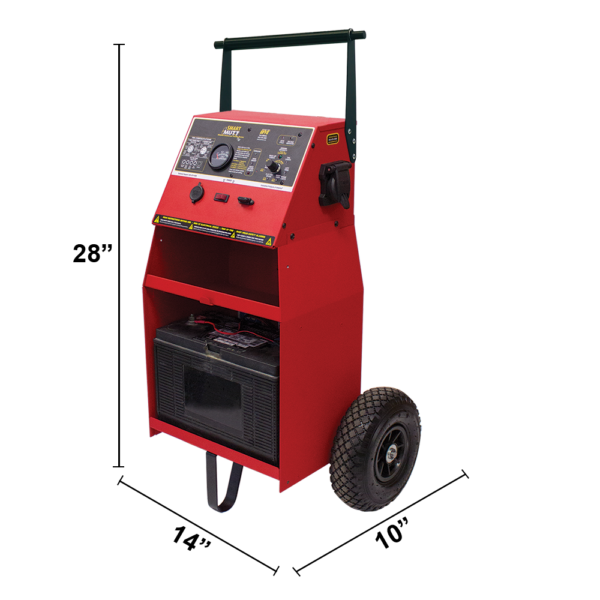

Remote-controlled mobile diagnostic trailer tester for light-duty trailer lights and electric brakes.

Find A Distributor
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us.

Price $1,187.50

Available To Order

Description

The Mobile Smart MUTT® with Pulsar® Mode Makes Trailer Testing a One-Man Operation

A portable, electronic trailer tester that instantly tests lights and electric brakes on light-duty type trailers (7-way flat, 6-way round, and 4/5 pin).



Features and Benefits:

ELECTRICAL TESTING(12/24V Operation)

  • Power lights and electric brakes: Manually, All-On, Auto Scan, or by Remote Control from over 200 ft. away
  • Audible and visual alerts: cross, open, overloaded and short circuit indication
  • Trailer wiring and circuit testing
  • Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
  • Amperage readout and range (-/ 20 amp range)
  • Remote control allows for one-man testing

REMOTE CONTROL

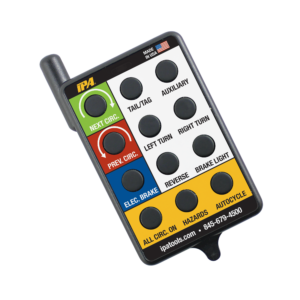

  • (2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
  • Sync multiple (12) remotes to one unit

Includes:
• (2x) 12-Button Remote Control (#MUT-RM12-4A) • 10-Amp Smart Battery Charger (#KCHG-121001) • 3-Way Trailer Adapter (#8000) • Rain Cover (#CVR-0001)

Read Our Full Trailer Testing Blog Here

Connection Type: 7-Way Flat Pin, 6-Way Round, 4/5 Pin
Power Input: 12/24V DC
Battery Requirements: Group 31 or Similar (Battery Not Included)
Output: 20 Amps @ 12/24V DC
Controls: Manual, Remote, Automatic
Material: Powder-Coated Steel
Weight: 42 lbs.
Dimensions: L: 17" W: 14" H: 30"
Warranty: 3-Year Limited Warranty
CoO: USA
