#M2000

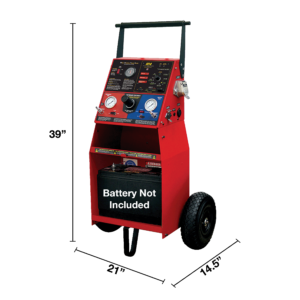

NATO MUTT®
Mobile Universal Trailer Tester

Industry-leading trailer tester that quickly repairs and troubleshoots military and commercial trailer light and air brake systems.

Find A Distributor
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us.

Price $2,628.18

In Stock
Ships Within 2 Business Days

Description

State-of-the-Art, 12/24V, ABS, Remote-Controlled Diagnostic Trailer Tester

The industry-leading trailer tester that quickly repairs and troubleshoots military and commercial trailer light and air brake systems. The durable NATO MUTT® is designed for on or off-site inspections.

Features and Benefits:

ELECTRICAL TESTING(12/24 Volt Operation)

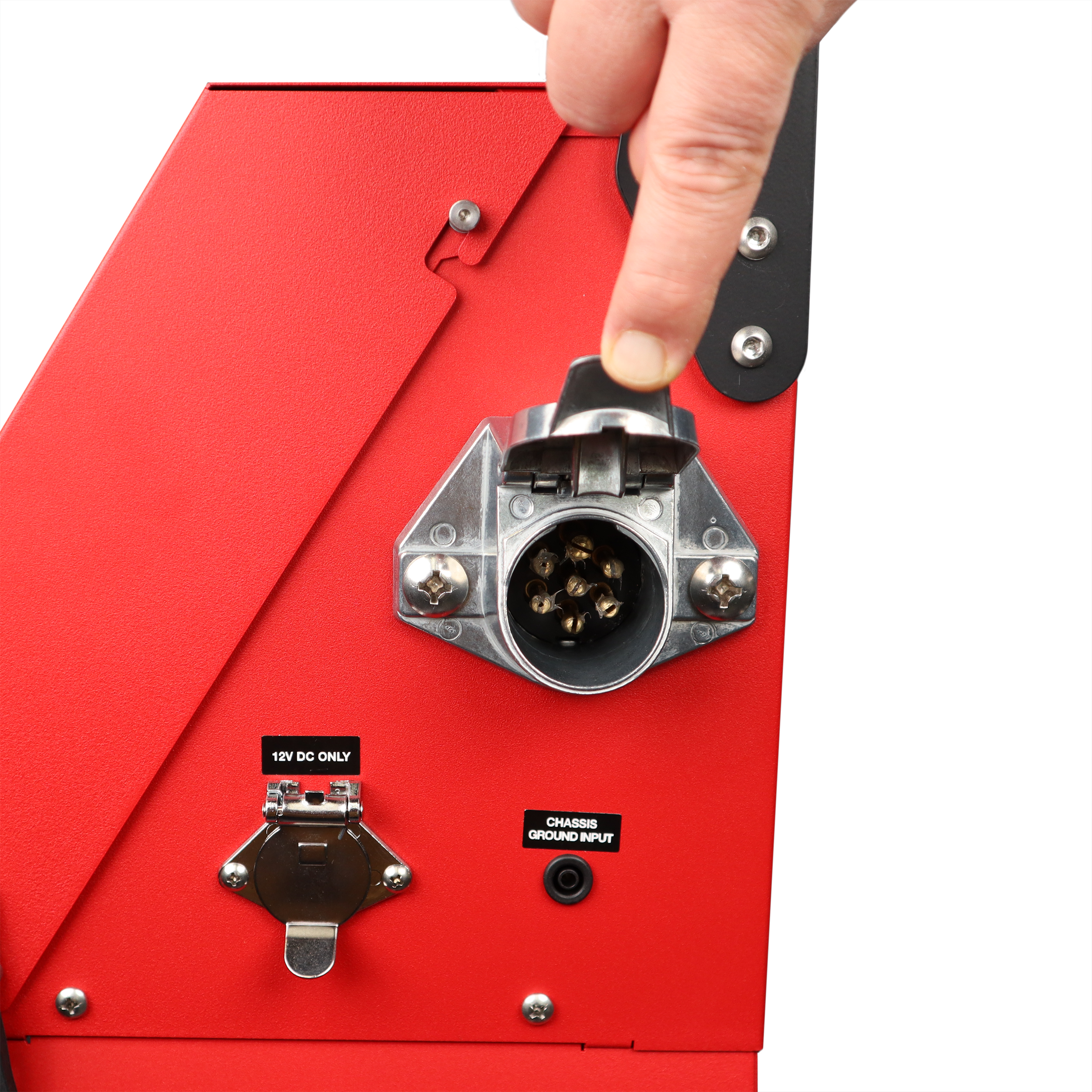

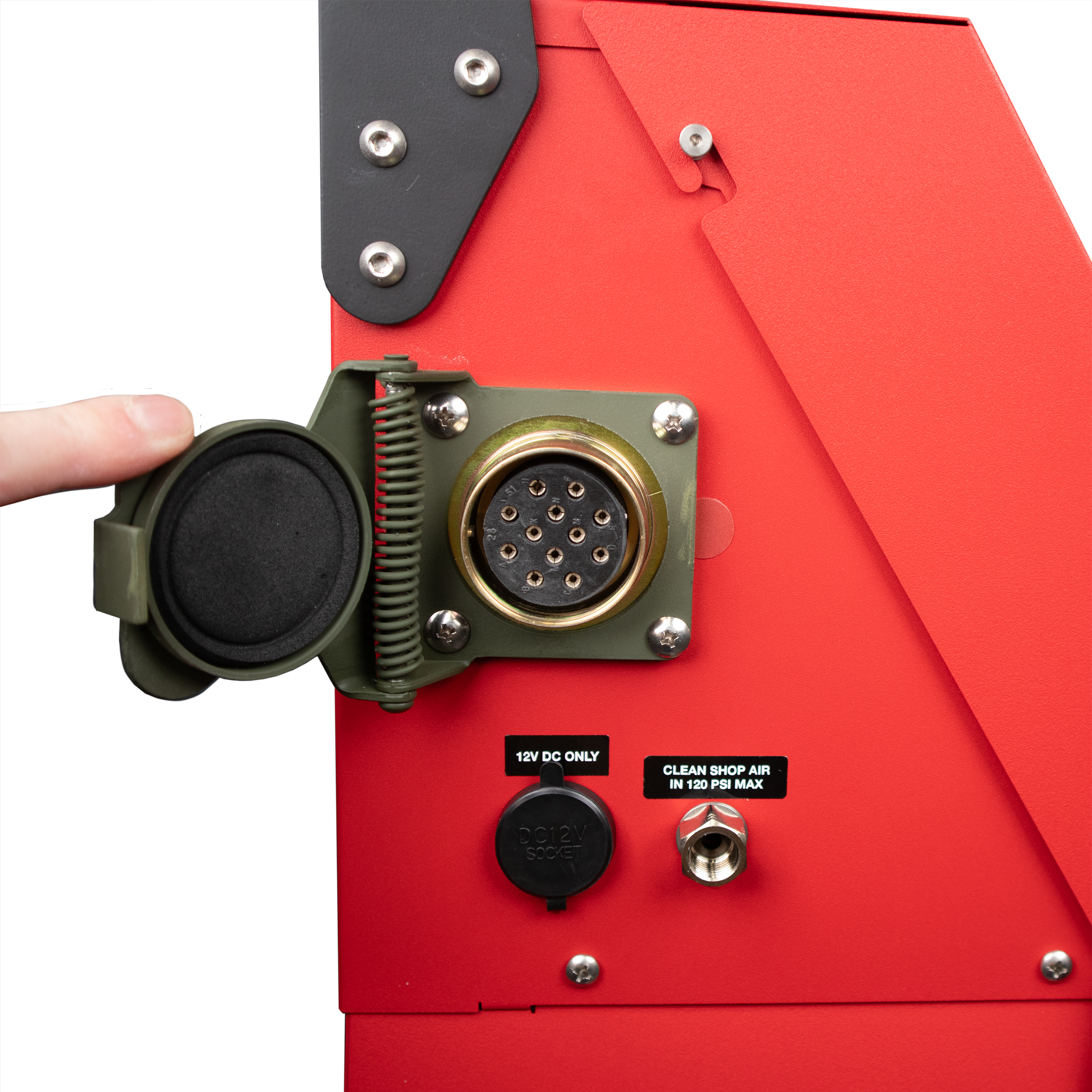

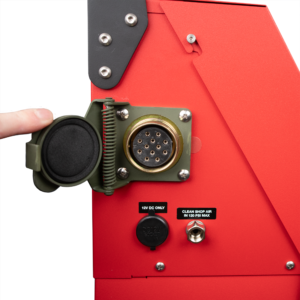

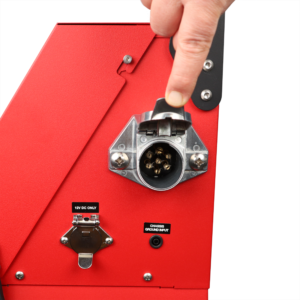

  • Designed for both 7-way round pin SAE J560 and 12-pin STANAG 4007 NATO plugs
  • Power lights: manually, all-on, auto scan, or by remote control
  • Audible and visual alerts: cross, open, overloaded and short circuit indication
  • Pulsar® mode allows diagnostic repair
  • Advanced trailer wiring diagnostics
  • Amperage readout and range (0-20 amps)
  • Ground failure detection: differentiates between wire and chassis ground

ABS TESTING

  • Access ABS blink codes
  • Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems)

AIR BRAKE TESTING

  • Performs leak down test on service and emergency lines
  • Remote control allows observation of slackers to measure and adjust pushrods
  • Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
  • Features an internal air regulator

REMOTE CONTROL

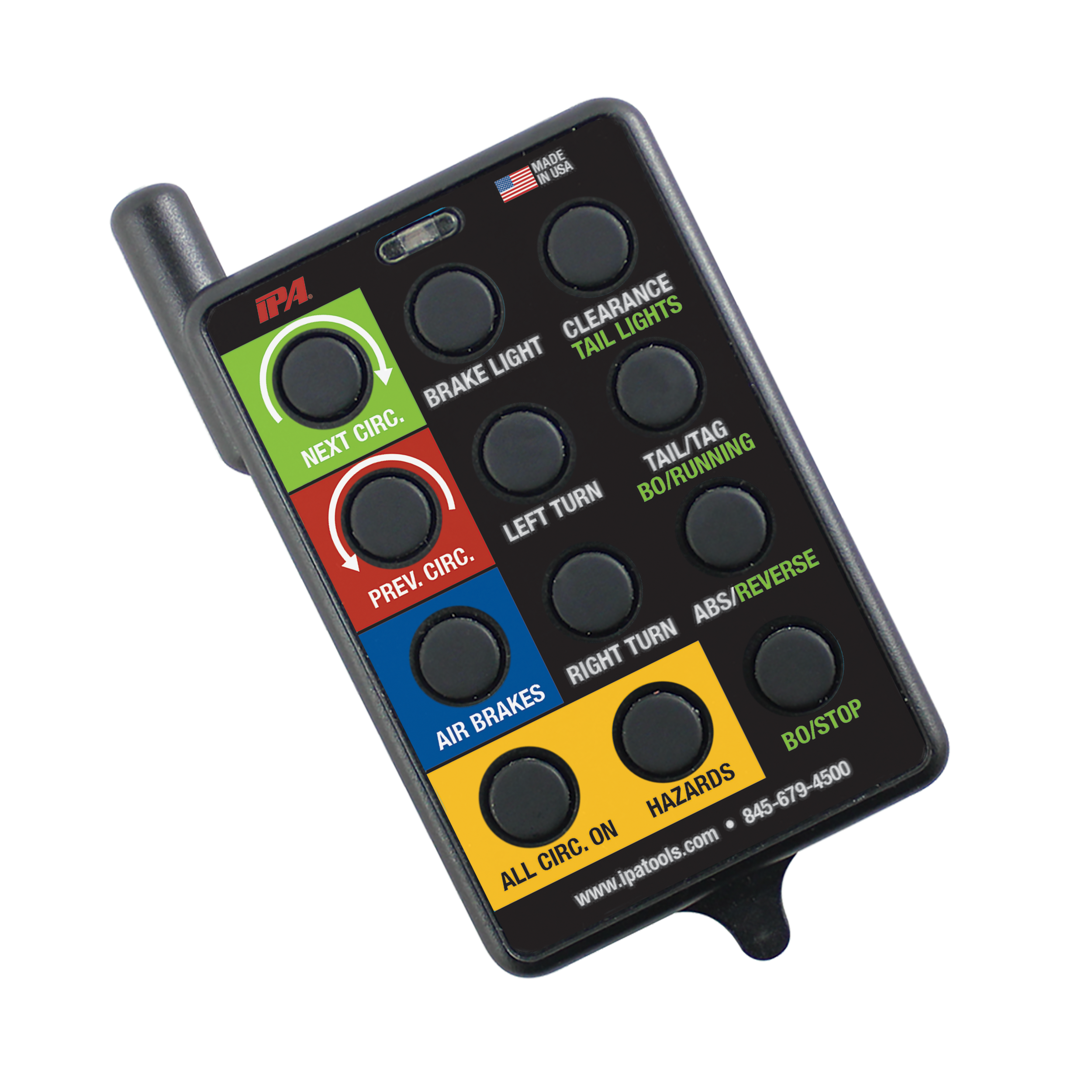

  • 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
  • Sync multiple (12) remotes to one unit

Includes:

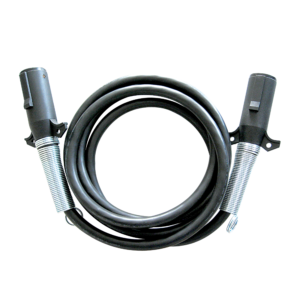

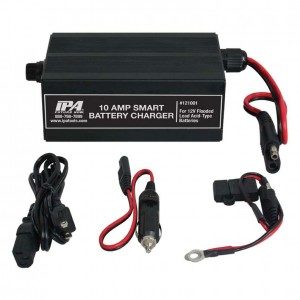

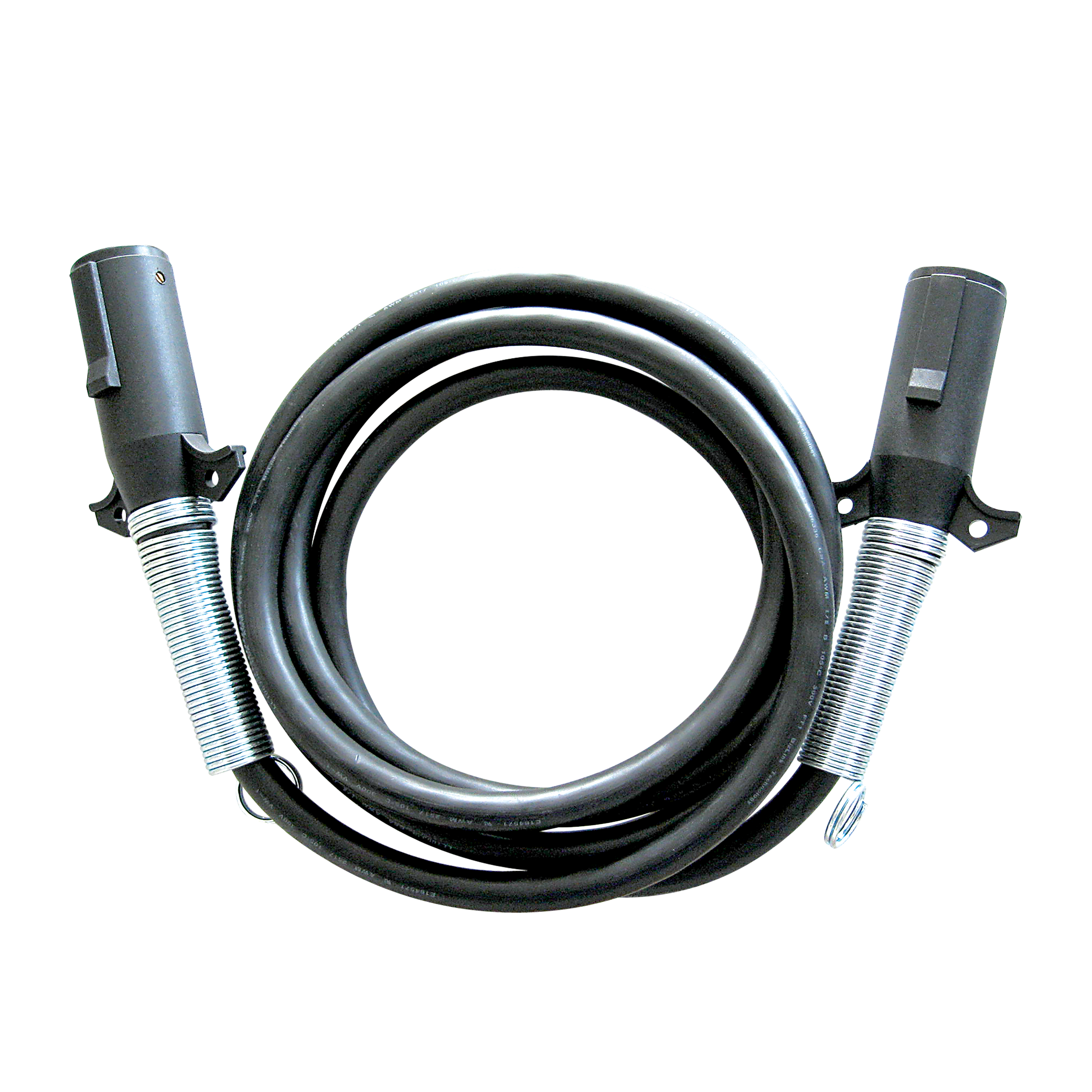

• (2x) 12-Button Remote Controls (#MUT-RM12) • 5′ 7-Way Cable (#7900K-1) • 8′ Red Hose with Gladhands (#7900AP-8RD-AS) • 8′ Blue Hose with Gladhands (7900AP-8BL-AS) • 10-Amp Smart Battery Charger (#KCHG-121001) • Face/Battery Shield (#9008-4R) • Rain Cover (#CVR-0001)

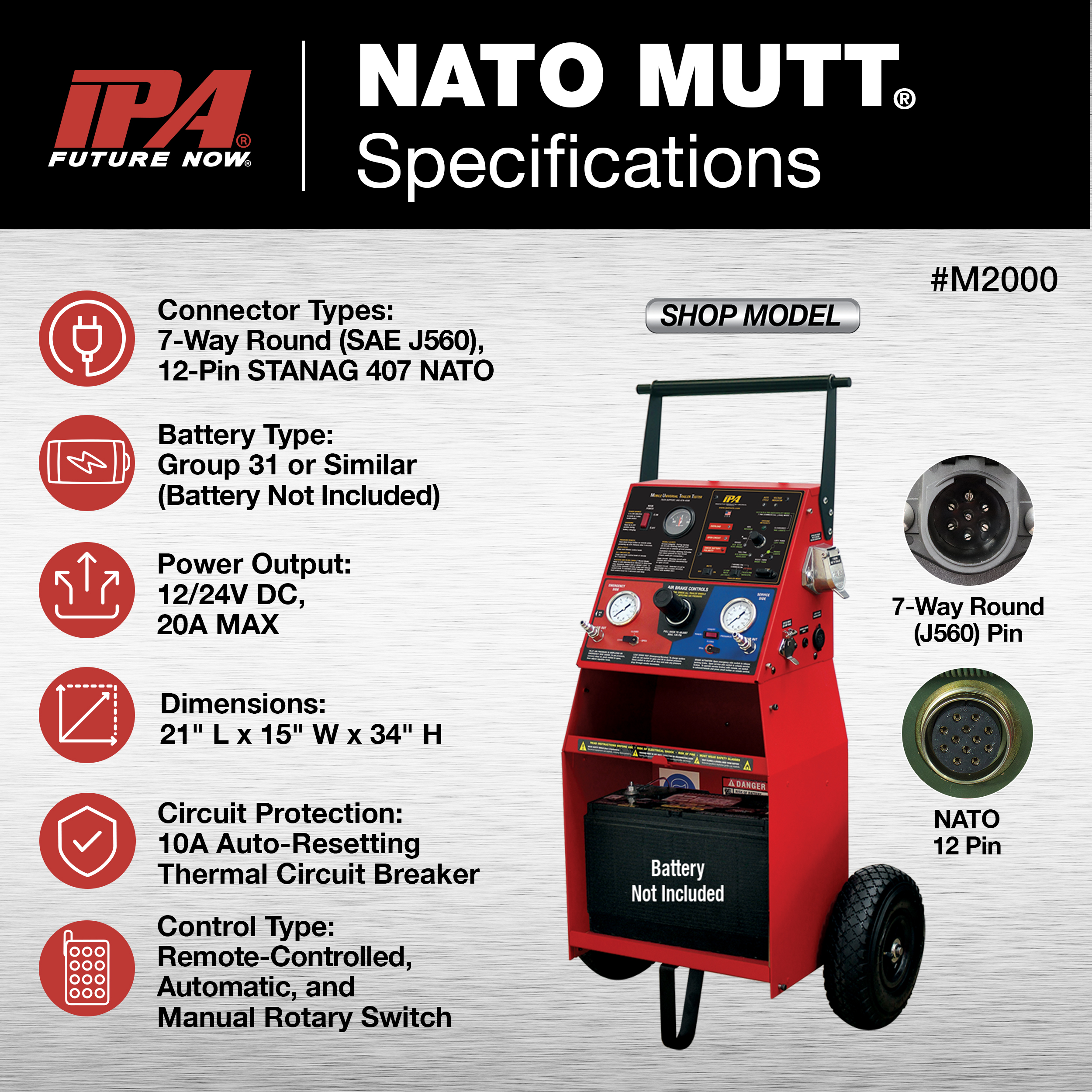

Connection Type: 7-Way Round Pin and 12-Pin NATO
Power Input: 12V DC
Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
Source Output: 20A @ 12V DC
Max Operating Pressure: 120 psi
Air Input: ¼" npt (120 psi max.)
Controls: Manual, Remote, Automatic
Tires: 10" Foam Filled
Material: Powder-Coated Steel
Weight: 56 lbs.

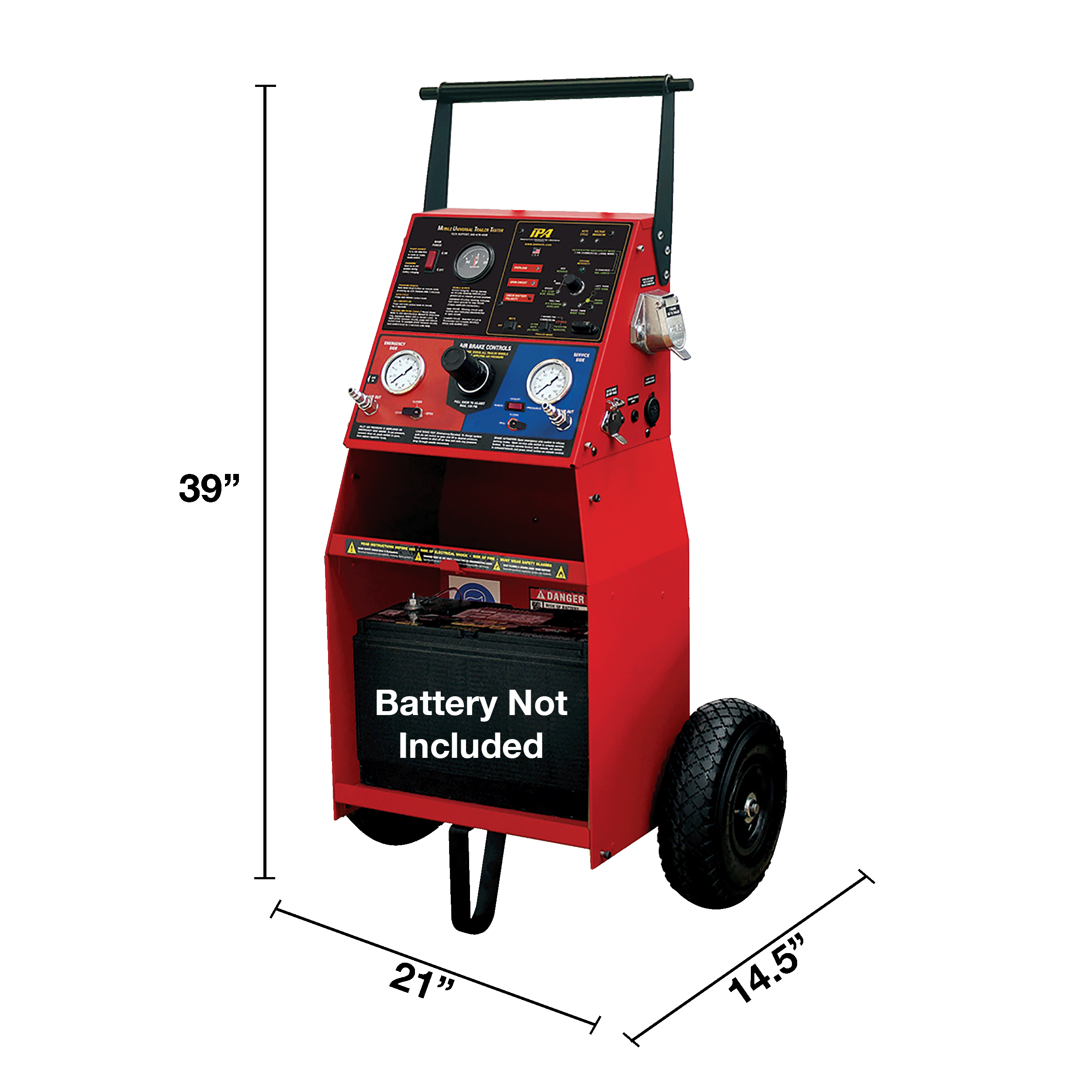

Dimensions: 21" L x 15" W x 35" H
Warranty: 3-Year Limited Warranty
CoO: USA

#
SKU: 9008-4R

Face Shield

$74.95
#
SKU: 7900AP-2640AS

Air-In Fitting

$5.00
#
SKU: MUT-PRES-AS2

Pressure Gauge

$15.00
#
SKU: MUT-REG-AS

Regulator

$25.00
#
SKU: MUT-SOLX-AS

Solenoid

$15.00
