Energize a Fuel Pump with the Push of a Switch!

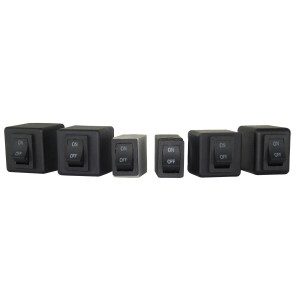

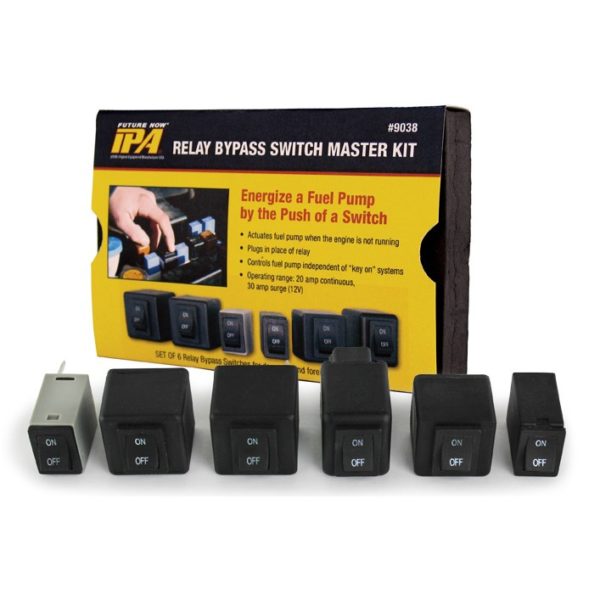

The Fuel Pump Relay Bypass Master Kit combines the most popular fuel pump relay applications. The 6-piece kit allows fuel pressure to be read when an engine is inoperable. It plugs in place of the fuel pump relay and provides direct control over the fuel pump circuit in most domestic, Japanese, Korean and German applications.


Features and Benefits:

  • Actuates fuel pump when the engine is not running

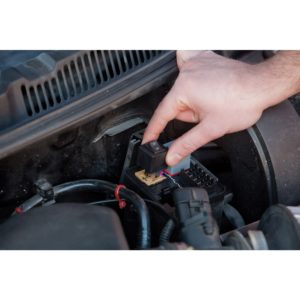

  • Plugs in place of relay
  • Controls fuel pump independent of “key-on/key-off” systems
  • Operating range: Up to 20 amp continuous, 30 amp surge (12V)
  • Covers most common makes and models

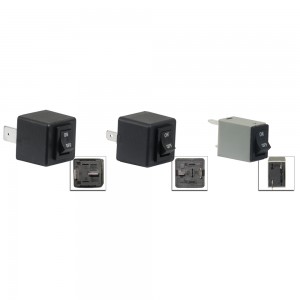

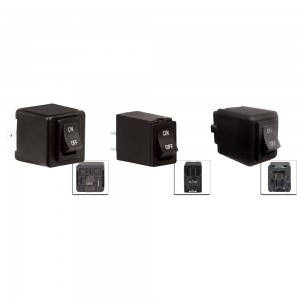

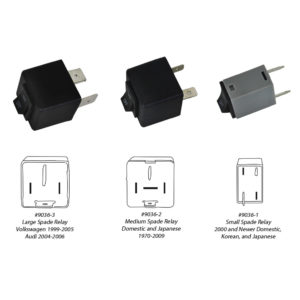

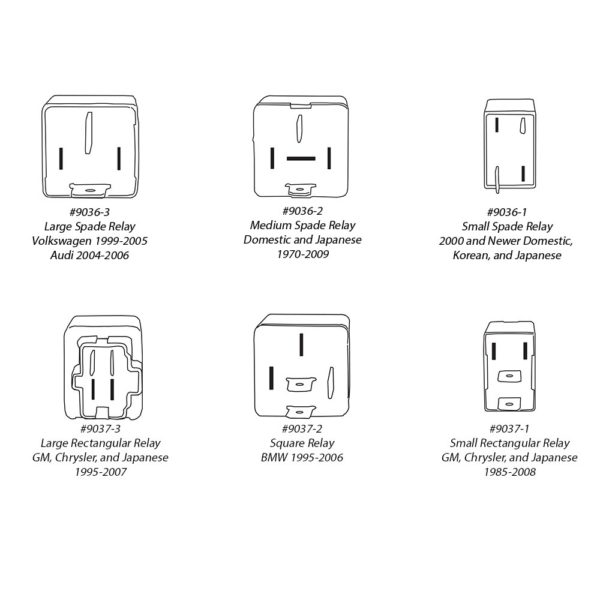

 • Small Spade Relay – Domestic, Korean, and Japanese 2000 and Newer (#9036-1) • Medium Spade Relay – Domestic and Japanese 1970-2009 (#9036-2) • Large Spade Relay – Volkswagen 1999-2005 Audi 2004-2006 (#9036-3) • Large Rectangular Relay – GM, Chrysler, and Japanese 1995-2007 (#9037-3) • Square Relay – BMW 1995-2006 (#9037-2) • Small Rectangular Relay – GM, Chrysler, and Japanese 1985-2009 (#9037-1)
