Disc Brake System Analyzer

(8 customer reviews)

Uneven brake pad wear? Eliminate guesswork when troubleshooting disc brake problems.

Find A Distributor
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us.

Price $304.95

In Stock
Ships Within 2 Business Days


The Only Tool that Identifies an Imploded Brake Hose and Accurately Detects Exactly Where the Problem Lies Without Breaking a Line.

For over 20 years the Disc Brake System Analyzer has been a critical tool for brake diagnostics. The Disc Brake System Analyzer is a must have for the professional brake technician. It is the only tool that can quickly identify an imploded brake hose and can quickly diagnose a proportioning valve imbalance.


Features and Benefits:

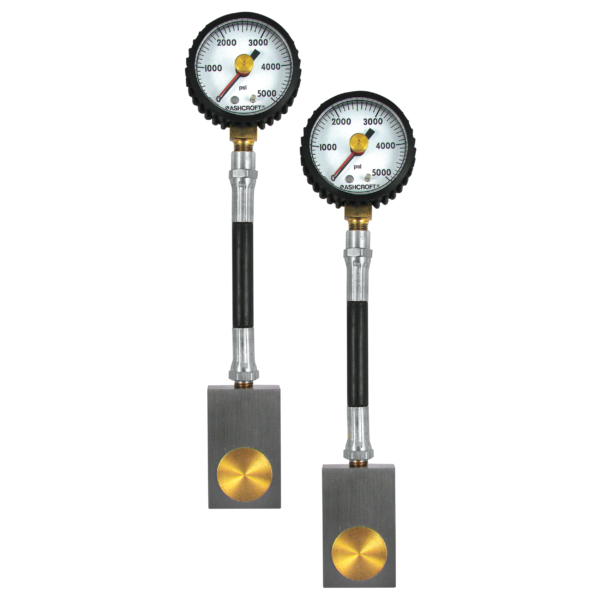

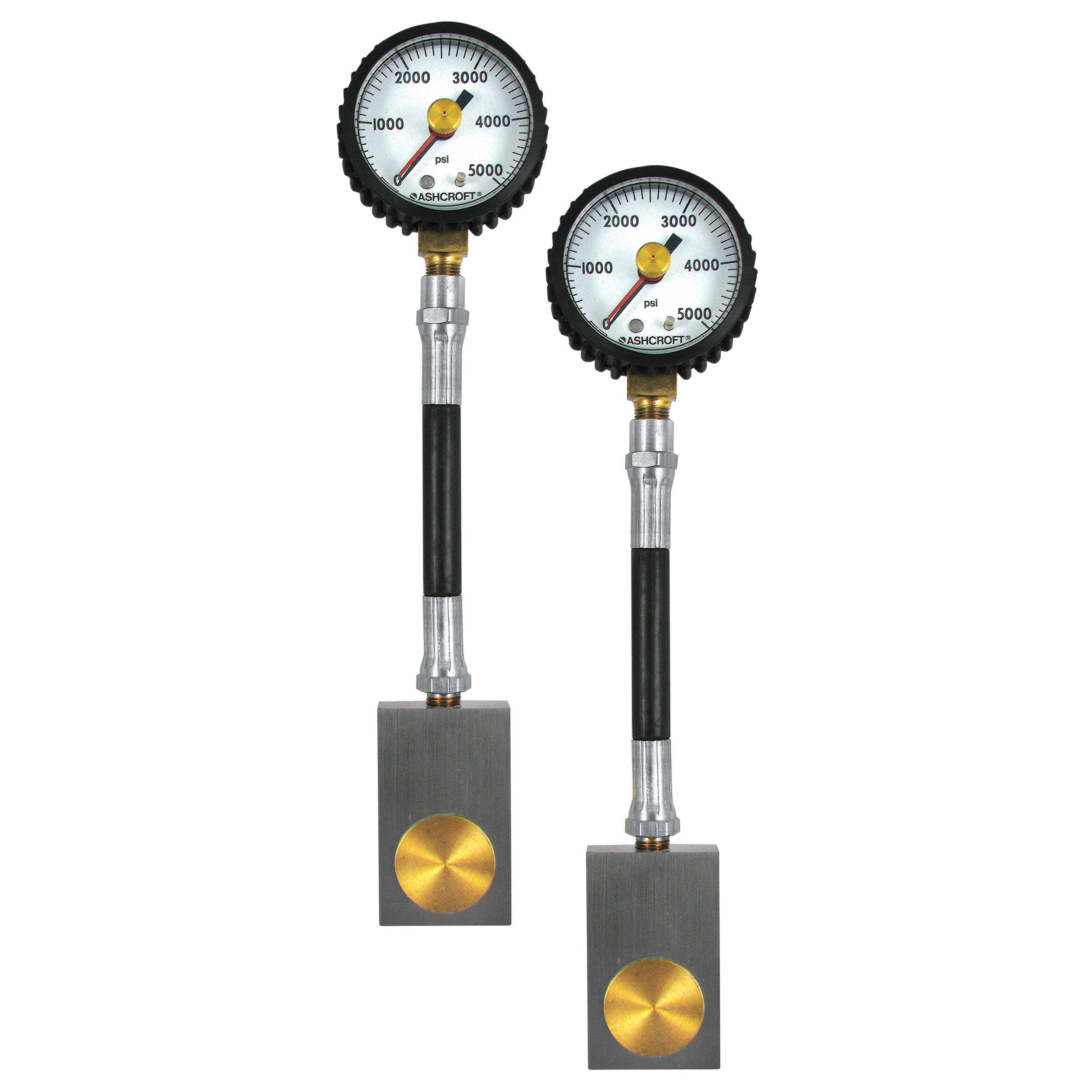

  • Has two load cells attached to analog gauges that each have a range of 0-5000 PSI (0-350 BAR)
  • Gauges are built with a red tell-tale memory needle that allows for one-man brake testing
  • Tests improperly adjusted proportioning valves, air in hydraulic systems, power booster problems, rear brake adjustment check, etc.
  • Tests sticky or broken brake calipers
  • Identifies the exact cause of uneven wear

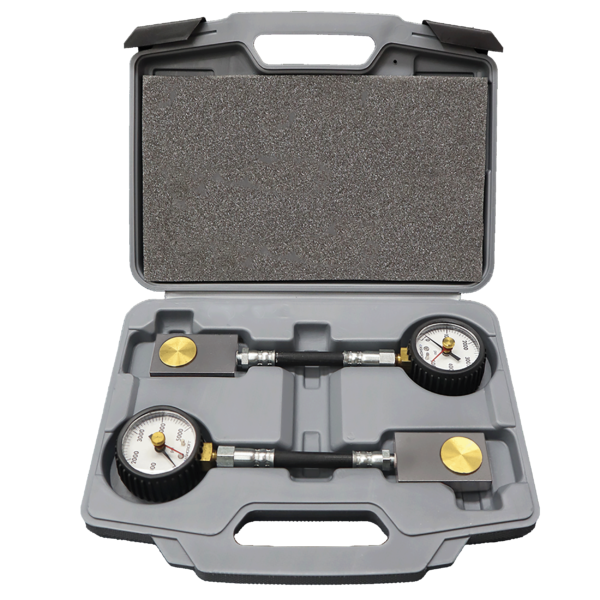

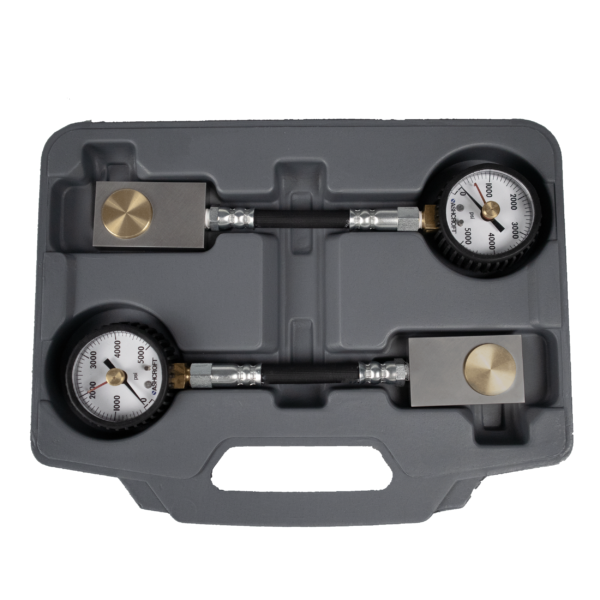

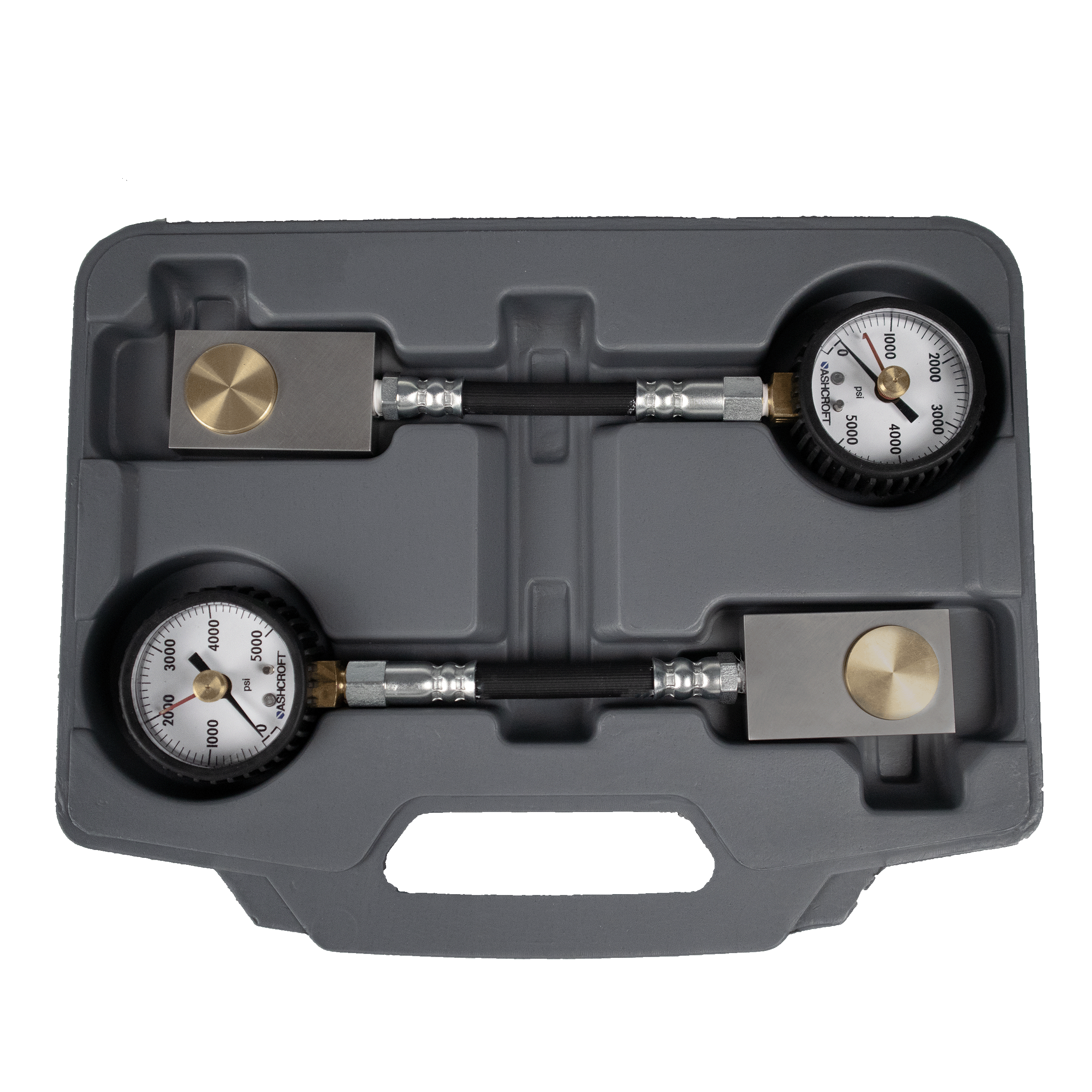

• (2) Disc Brake System Analyzers (#7884-AS) • Blow-Molded Case (#7884-13)

8 reviews for Disc Brake System Analyzer

  1. greenjeep79

    brake tester I have always just guessed at my brake performance, but with this tester I can tell if I will have good brakes before I drive a new project

  2. doug

    Five Stars Works great. You may have to be creative to use it on some calipers.

  3. J Victor Downin

    Five Stars Very nice tool

  4. thePartsMan

    A must have tool! Incredibly effective tool, this one is a must-have for professional brake service technicians.

  5. KARL

    very nice, fast on time shipping very nice,fast on time shipping…A plus



  7. DJ

    Must have for quick hydraulic diagnosis Good quality for the price. Would buy again

  8. Rebecca Gray

    handy tool Great tool to give me the specific information I needed to repair problem brakes.

Only logged in customers who have purchased this product may leave a review.

Gauge Ranges: 0-5000 psi (0-350 BAR)
Materials: Steel Body, Rubberized Gauge
Package Weight: 2.7 lbs.
Package Dimensions: 12" L x 6" W x 2" H
Warranty: Lifetime Warranty
