Fuel Pump Relay Bypass Kit

(1 customer review)

Energize a fuel pump by the push of a switch.

Find A Distributor
For International Customers
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us here.

International Sales

To place an order from outside of the United States, please call 888-786-7899 or email us here

Price $53.95

In Stock
Ships Within 2 Business Days

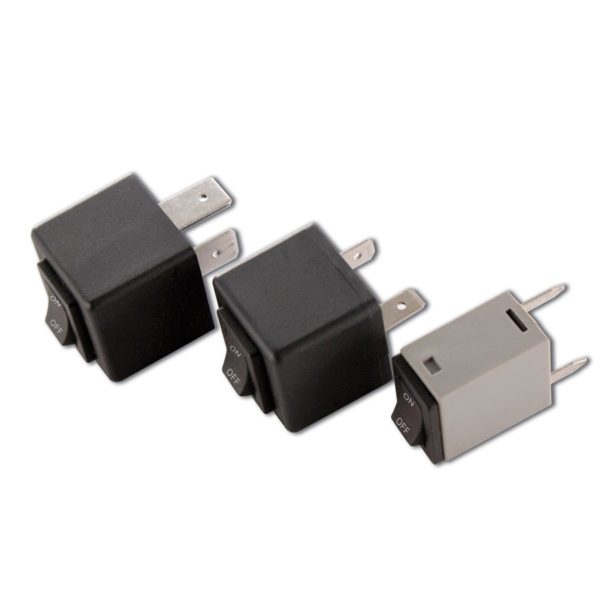

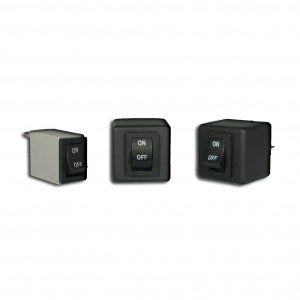

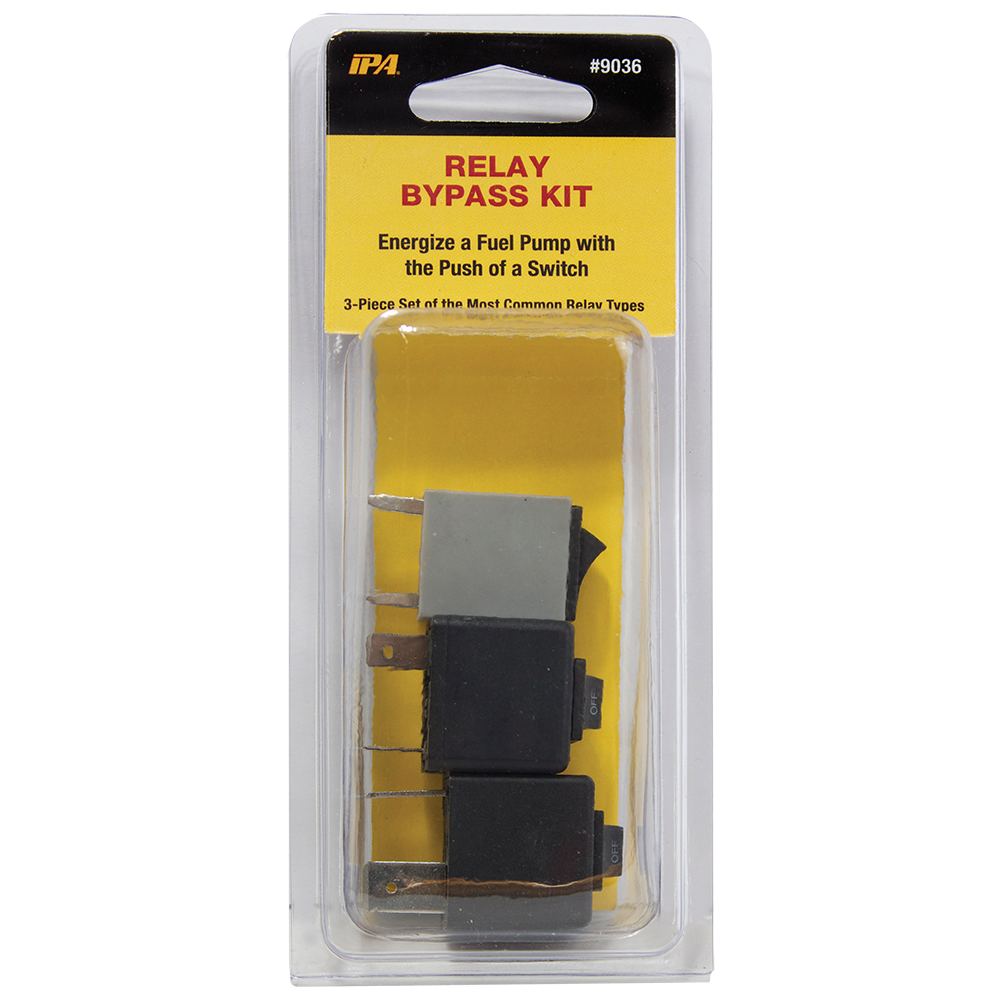

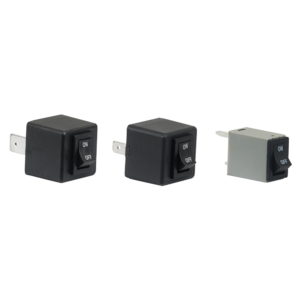

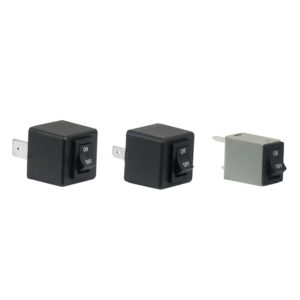

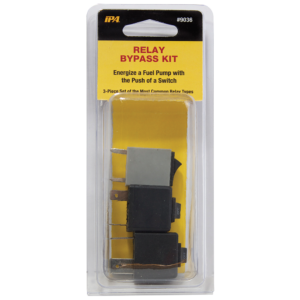

3-Pc. Set Covers Common Fuel Pump Relay Applications.

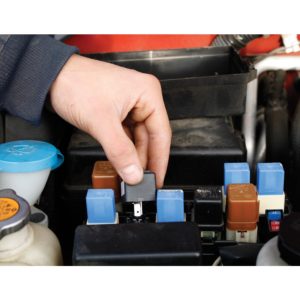

The Relay Bypass Switch plugs in place of the fuel pump relay and provides direct control over the fuel pump circuit. It can be used to actuate the fuel pump when the engine is not running, allowing the fuel pressure to be read.


Features and Benefits:

  • Allows easy testing of fuel injection pressure by energizing the fuel pump while the engine is off
  • Relay Bypass allows a technician to control the fuel pump independent of “key on” systems
  • Operating range: 20 amp continuous, 30 amp surge (12V)
  • Plugs in place of relay

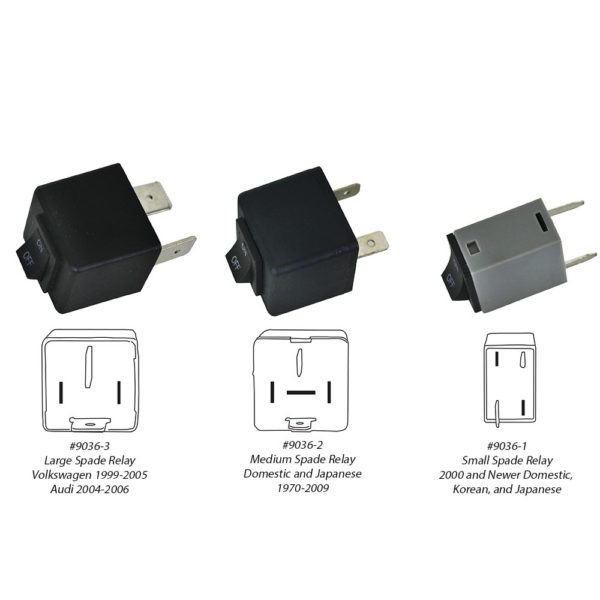

• Small Spade Relay – Domestic, Korean, and Japanese 2000 and Newer (#9036-1) • Medium Spade Relay – Domestic and Japanese 1970-2009 (#9036-2) • Large Spade Relay – Volkswagen 1999-2005 Audi 2004-2006 (#9036-3)


1 review for Fuel Pump Relay Bypass Kit

  1. Eric

    You know I’ve spent some time jumping hot leads and fuses normally when ignition fails or locks up…… Best thing I’ve seen in a long time that could potentially save lives in a pinch! As soon as I can afford a kit I’m investing!!!

Add a review

Your email address will not be published. Required fields are marked *

Operating Range: 10-20 Amp Continuous, 30 Amp Surge
Materials: ABS Plastic, Brass, PVC
Package Weight: .1 lbs.
Package Dimensions: 7" L x 3" W x 2" H
Warranty: 1-Year Limited Warranty
CoO: Made in the USA of Global Components
