Relay Bypass Switch Kit with Amp Loop

Control and test 12V circuits independent of key-on systems. Includes 6 relays with amp loops for current monitoring—ideal for fuel pumps, fans, and motors.

Find A Distributor
For International Customers
Distributor Information

To locate a distributor near you, please call 888-786-7899 or email us here.

International Sales

To place an order from outside of the United States, please call 888-786-7899 or email us here

Price $126.95

In Stock
Ships Within 1 Business Day
Same Day Shipping Before 1PM EST

Description

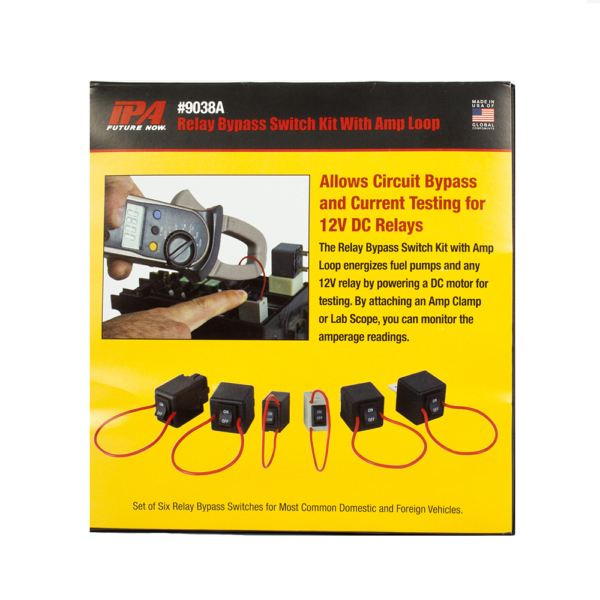

The 9038A Relay Bypass Switch Kit with Amp Loop gives technicians the ability to test and control 12V circuits independent of key-on systems. Perfect for diagnosing components like fuel pumps, cooling fans, and electric motors, this kit makes pressure testing, current measurement, and circuit isolation easier and more accurate.

Each relay features an integrated amp loop, allowing safe and easy current monitoring with clamp-on amp probes or lab scopes. This helps detect overcurrent conditions and identify worn or failing motors based on amp draw behavior.



The kit includes six relay styles covering a broad range of domestic and import vehicles. Note: the large relays are rated for 20A continuous / 30A surge, while the smaller spade relays are rated for 10A continuous / 20A surge.



Features and Benefits:

  • Test 12V circuits independent of key-on systems
  • Amp loop built into each relay for clamp-based current monitoring
  • Ideal for fuel pump, fan motor, and accessory diagnostics
  • Large relays rated for 20A continuous / 30A surge (12V)
  • Small relays rated for 10A continuous / 20A surge (12V)

Includes:
Small Spade Relay – Domestic, Korean, and Japanese 2000 and newer (#9036A-1) (10A/20A)Medium Spade Relay – Domestic and Japanese 1970–2009 (#9036A-2) (10A/20A)Large Spade Relay – Volkswagen 1999–2005, Audi 2004–2006 (#9036A-3) (20A/30A)Large Rectangular Relay – GM, Chrysler, Japanese 1995–2007 (#9037A-3) (20A/30A)Square Relay – BMW 1995–2006 (#9037A-2) (20A/30A)Small Rectangular Relay – GM, Chrysler, Japanese 1985–2009 (#9037A-1) (20A/30A)

Reviews

There are no reviews yet.

Be the first to review “Relay Bypass Switch Kit with Amp Loop”

Your email address will not be published. Required fields are marked *

#9038A Relay Bypass Switch Kit with Amp Loop

Operating Range: 10-20 Amp Continuous, 30 Amp Surge
Material: Teflon
Package Weight: 0.4 lbs.
Package Dimensions: 7" L x 7" W x 1" H
Warranty: 1-Year Limited Warranty
CoO: Made in the USA of Global Components
