(Supersedes the #9004A Smart MUTT®)

Available In Two Models :

#4105 Smart MUTT® X (7-Way Spade, 7-Way Round, 6-Way Round, 5 and 4 Pin)
#4105-L4 Smart MUTT® X w/ Lithium Battery (7-Way Spade, 7-Way Round, 6-Way Round, 5 and 4 Pin)

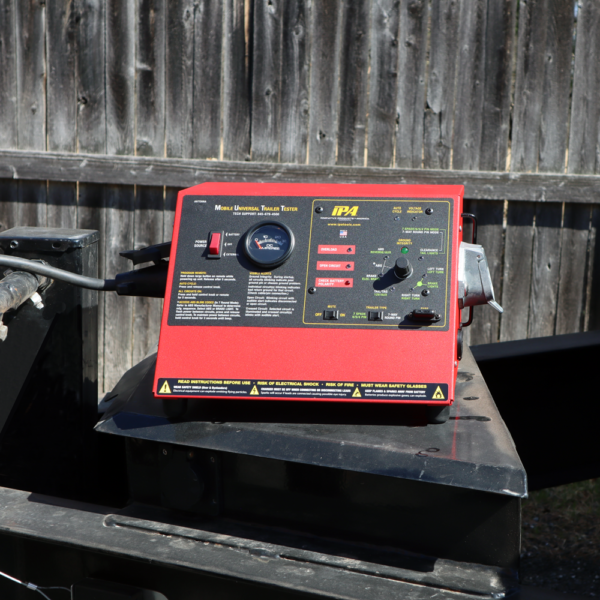

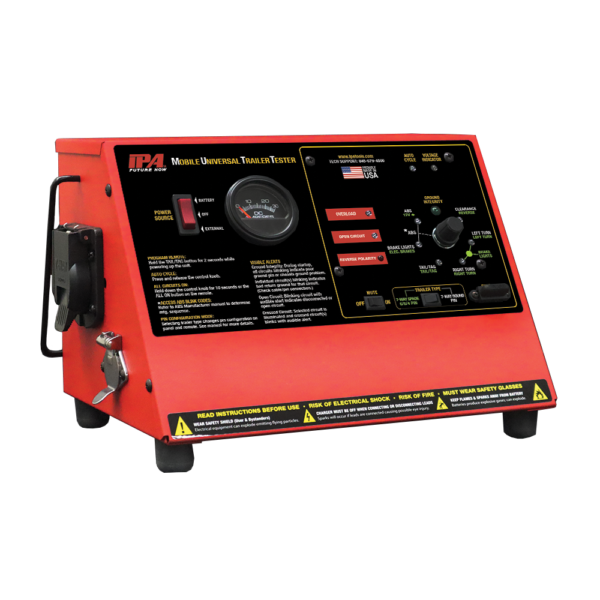

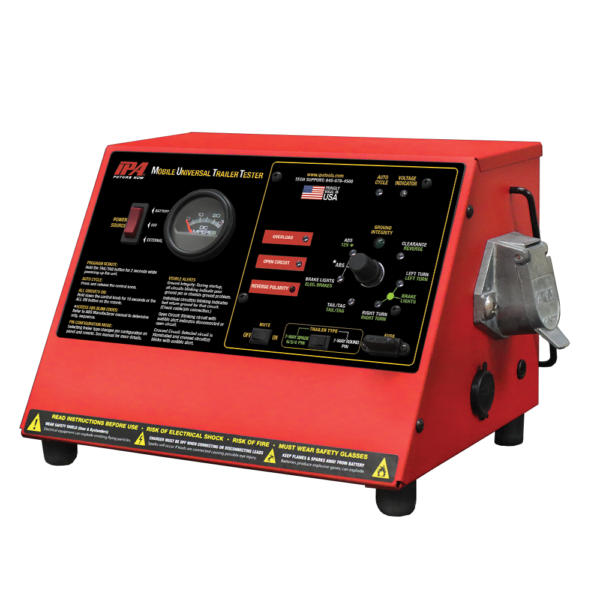

A Universal, Remote-Controlled, Diagnostic Light Tester for All North American Trailers

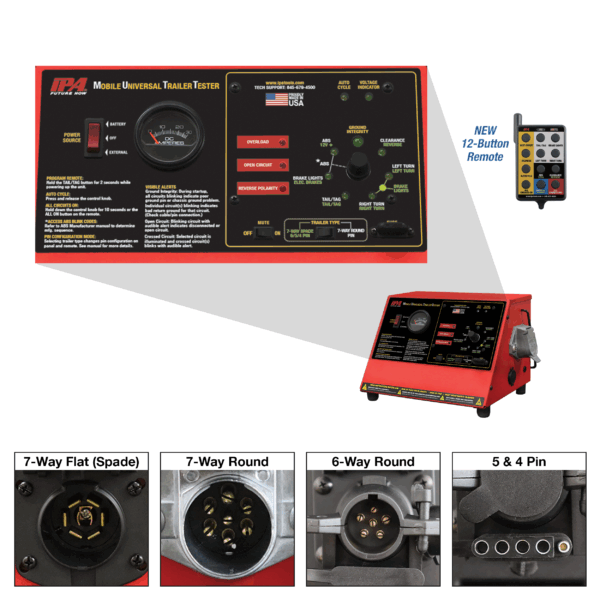

Built to facilitate a one-man testing operation, the Smart MUTT® X reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. Designed to be used on five trailer connection types (7-way flat (spade), 7-way round, 6-way round, 5 pin and 4 pin connections), the SMART MUTT® X tests lights and electric/hydraulic brakes on commercial and light-duty trailers.

Features and Benefits:

ELECTRICAL TESTING(12/24V Operation)

• Power lights: Manually, All-On, Auto Scan, or Remote Control
• Audible and visual alerts: cross, open, overloaded and short circuit indication
• Pulsar Mode allows for chasing down short circuits without blowing fuses
• Advanced trailer wiring diagnostics
• Analog Ammeter Readout 0-20 Amps
• Remote control allows for one-man testing

Includes:
• 12-Button Remote Control (#MUT-RM12-4A) • 500mA Battery Charger (#CHR0001) • 3-Way Trailer Adapter (#8000)
