One-Man, Battery-Powered Trailer Inspection System that Tests a Trailer Without a Truck!

Integrate all aspects of trailer service and repair with this easy-to-use trailer tester with advanced ABS, lights and digital air brake diagnostics. It includes an internal lithium battery and requires no set-up or monthly fees.

#5510A-RT8 Available Without Lithium Battery – $6295.00

Features and Benefits:

ABS TESTING

• Reads and clears codes on front panel or rugged tablet
• Accesses ECU data; manufacturer, make, model, etc.
• Displays diagnostic troubleshooting information
• Automatically detects corroded ABS wires and faulty ECU’s with patent-pending technology
• No lag time when accessing ABS with IPA®’s custom diagnostic software

ELECTRICAL TESTING(12/24 Volt Operation)

• Automatic cross, open, overload, short and ground fault detection
• Highly accurate digital ammeter with 1mA resolution
• Pulsar Mode allows for chasing down short circuits without blowing fuses
• Ground failure detection: differentiates between wire and chassis ground
• Cable testing
• Control lights by remote or rugged tablet
• Detailed inspection report generated from auto-test report function in under 60 seconds

AIR BRAKE TESTING

• Dual regulators
• Rugged tablet or remote-controlled air brake activation
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Perform analog leak-down tests in service and emergency lines

TRUCK-SIDE TESTING

• Tests continuity to trailer connectors of tractor
• Tests air brake output at tractor gladhands

Environmentally Safe, Long-Lasting and Stronger Battery

• LiFePO4 batteries are superior to other lithium and lead acid batteries
• Lithium iron phosphate composition is non-toxic and naturally non-combustible
• Lighter and safer than standard lithium ion batteries
• Stronger charge efficiency and greater discharge capabilities
• Longer lifespan – get more inspections out of one charge
• No memory effect – will not lose charge longevity over time
• Withstands extreme temperatures (-4°F-165°F) with a peak reach of 930°F

Built for Any Shop or Service-Truck Need

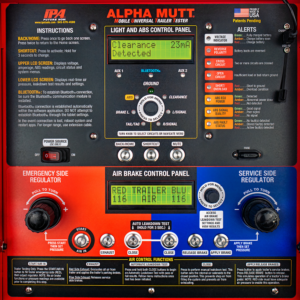

• Waterproof and sealed face label with illuminated stainless steel pushbutton switches
• Two dual-line, 32-character, sealed LCD screens optimized for outdoor use with backlighting for nighttime, sunlight-readable for daytime, and wide-angle view
• Tri-mount handle design for use in the shop, field or on the road
• Carry handle option allows transportability of unit – carry it anywhere you go

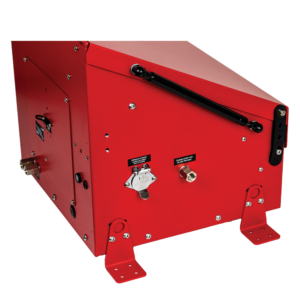

• Bottom-mount option lets unit be secured to a cart for mobility in the shop, or installed into truck box

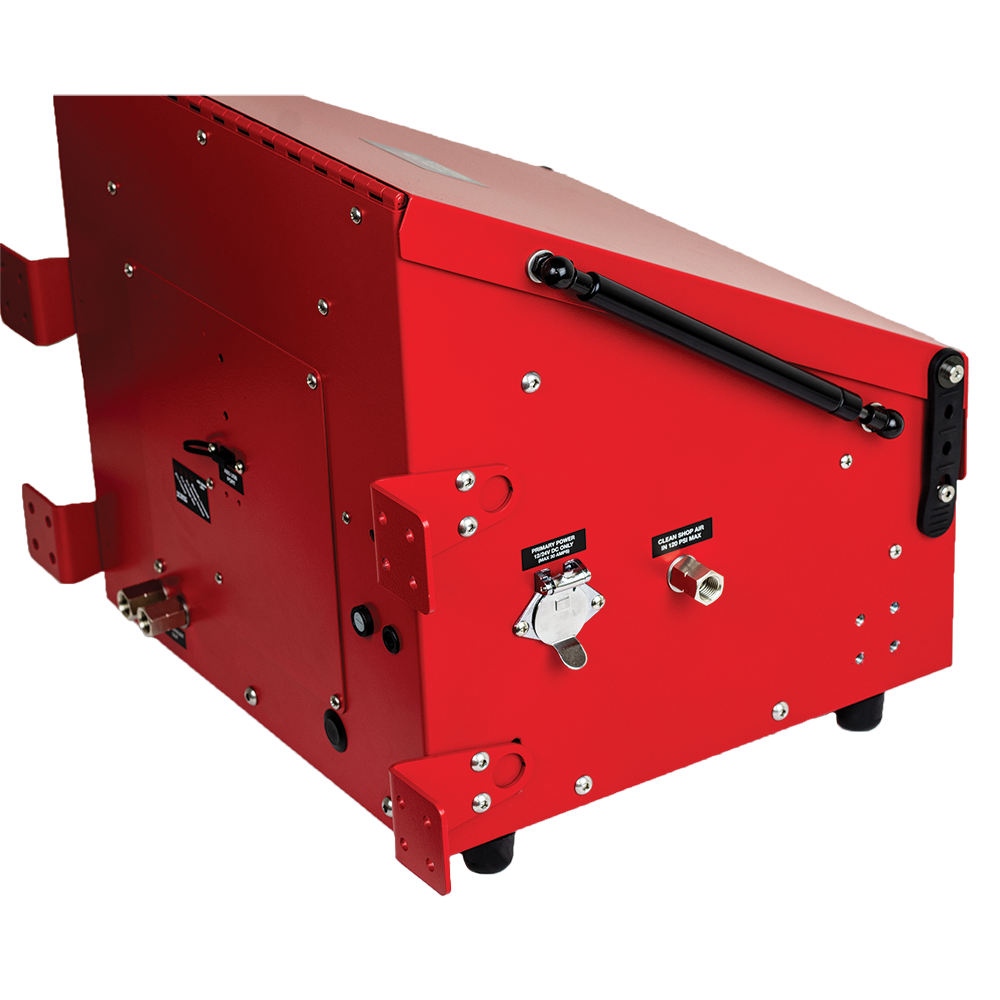

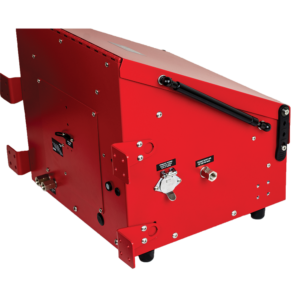

• Back-mount option provides a secure, stationary unit when hung on a wall, in a truck box, or at the back of the shop work bench

IPA®’s Diagnostic Software Suite

IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.

CAPTURE INSPECTION REPORTS

• Inspection accountability
• Customizable, password-protected user login
• Technician’s username is recorded with each test
• Trailer VIN entry with each inspection maintains more accurate record keeping

PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE

• Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions
• Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values
• Provides real-time data and control
• Records multiple data points for each circuit including wattage, voltage and current
• Reads accurate current from 0-21A @ 1mA resolution

RECORD AND ANALYZE INSPECTIONS RESULTS

• Logs detailed pass/fail inspection reports
• Easily accessible report history allows technicians to analyze patterns for predictable failure points across all fleet service operations
• Upgradeable cloud-based option syncs an unlimited number of service locations with a central hub
• Email, print or export reports to PDF or XLS formats

MILITARY-GRADE TABLET TESTED AGAINST:

• Salt Fog, Settling and Blowing Dust, Icing, Rain, Humidity, Immersion, Vibration, Dropping, High/Low Temperatures, and High Altitude

Includes:

8″ Rugged Tablet • 2nd Gen 12-Button Remote Control • Bluetooth® Communication Module • 5’ Bluetooth® Extension Cable • 12′ Gladhand Hoses with Handles • 12′ 7-Way Cable • Power Cable • 500mA Battery Charger • Expanded Training Manual and Parts List Binder
