Stress Test Circuits, Locate Shorts and Reset Breakers Without Damaging Fuse Boxes

The Fuse Saver® (2nd Gen) Master Kit is your solution for quick and safe short circuit troubleshooting without the risk of blowing fuses or smoke testing vehicle electrical systems. This kit equips you with five manual resetting thermal breaker handles (5A, 10A, 15A, 20A and 30A), color-coded to match the vehicle’s fuse sizes. It also includes a 10-ft. cord with dual ATC/ATO connections, a BuzzAlert module, and eight fuse adapters. You can now confidently stress-test circuits and quickly find hidden shorts without damaging the fuse box or the fuses.

The Fuse Saver® (2nd Gen) Standard Kit is your solution for quick and safe short-circuit troubleshooting without the risk of blowing fuses or smoke testing vehicle electrical systems. This kit equips you with three manual resetting thermal breaker handles (10A, 15A and 20A), color-coded to match the vehicle’s fuse sizes. You can now confidently stress-test circuits and quickly find hidden shorts without damaging the fuse box or the fuses.

To use, plug the Fuse Saver®’s 10-ft cord into the fuse box, along with an appropriate adapter if needed, to replace the
troubled circuit’s fuse. Connect the appropriately rated breaker handle to the 10-ft cord. When a short is detected, the
breaker will trip, and you can manually reset it to reapply power and continue testing. The standard fuse cord comes with an integrated ATC/ATO Standard and Mini adapter.

Features and Benefits

The Fuse Saver® (2nd Gen) Standard Kit – #8005A

• Provides a fast and safe solution to the old methods of “smoke testing” a short
• Chase down short circuits without blowing fuses
• Includes three resetting thermal breakers (5, 10, and 20A), fuse adapters compatible with four different fuse types (MICRO2, MCASE, ATC/ATO Standard and Mini) and a 10-ft. cord in a custom blow molded case
• 10-ft cord allows a technician to move around a vehicle while troubleshooting
• Helps to troubleshoot lighting, fuel pumps, motors and most all electrical circuits that are routed through the fuse box

The Fuse Saver® (2nd Gen) Master Kit – #8016A

• Move around the vehicle with the ability to shake test wires while troubleshooting
• Color-matched handles for easy amperage identification
• Helps to troubleshoot lighting, fuel pumps, motors and most all electrical circuits that are routed through the fuse box
• No more overheating fuse boxes
• BuzzAlert module clicks onto Fuse Saver® handle to provide an audible alert when a short circuit is triggered
• Includes a variety of adapters and connectors for eleven different fuse types compatible with Glass, European Ceramic, Large Female PAL, JCASE, Female FLF/Standard PAL, MAXI, Ring Terminal, MICRO2/3, MCASE, ATC/ATO Standard and Mini

Includes

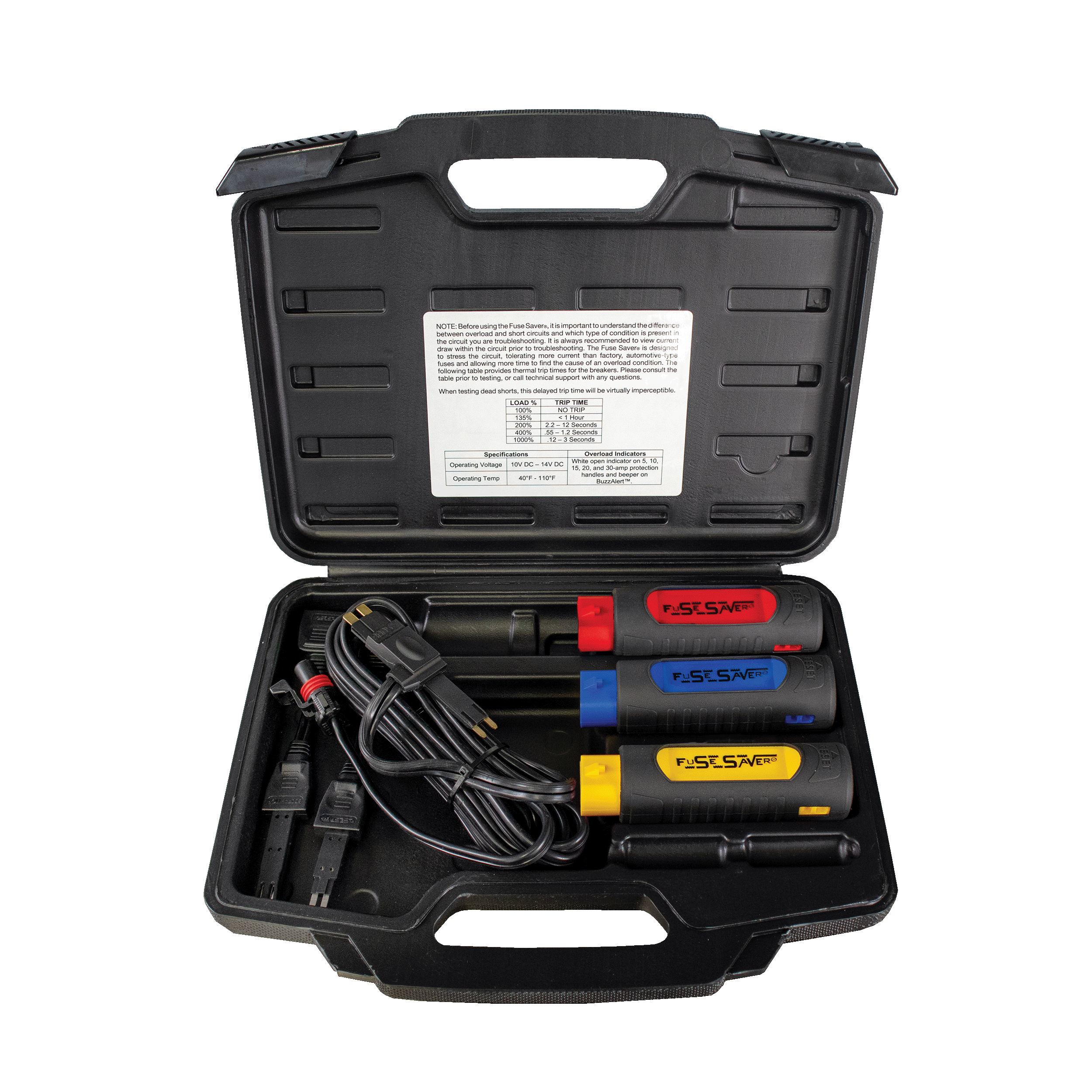

The Fuse Saver® (2nd Gen) Standard Kit – #8005A

• Three Resetting, Color-Matching Thermal Breakers: 10 Amps (red), 15 Amps (blue) and 20 Amps (yellow) • 2 Adapters (MICRO2 and MCASE) • 10-ft. Cord with Dual ATC/ATO Connections • Custom Blow-Molded Case

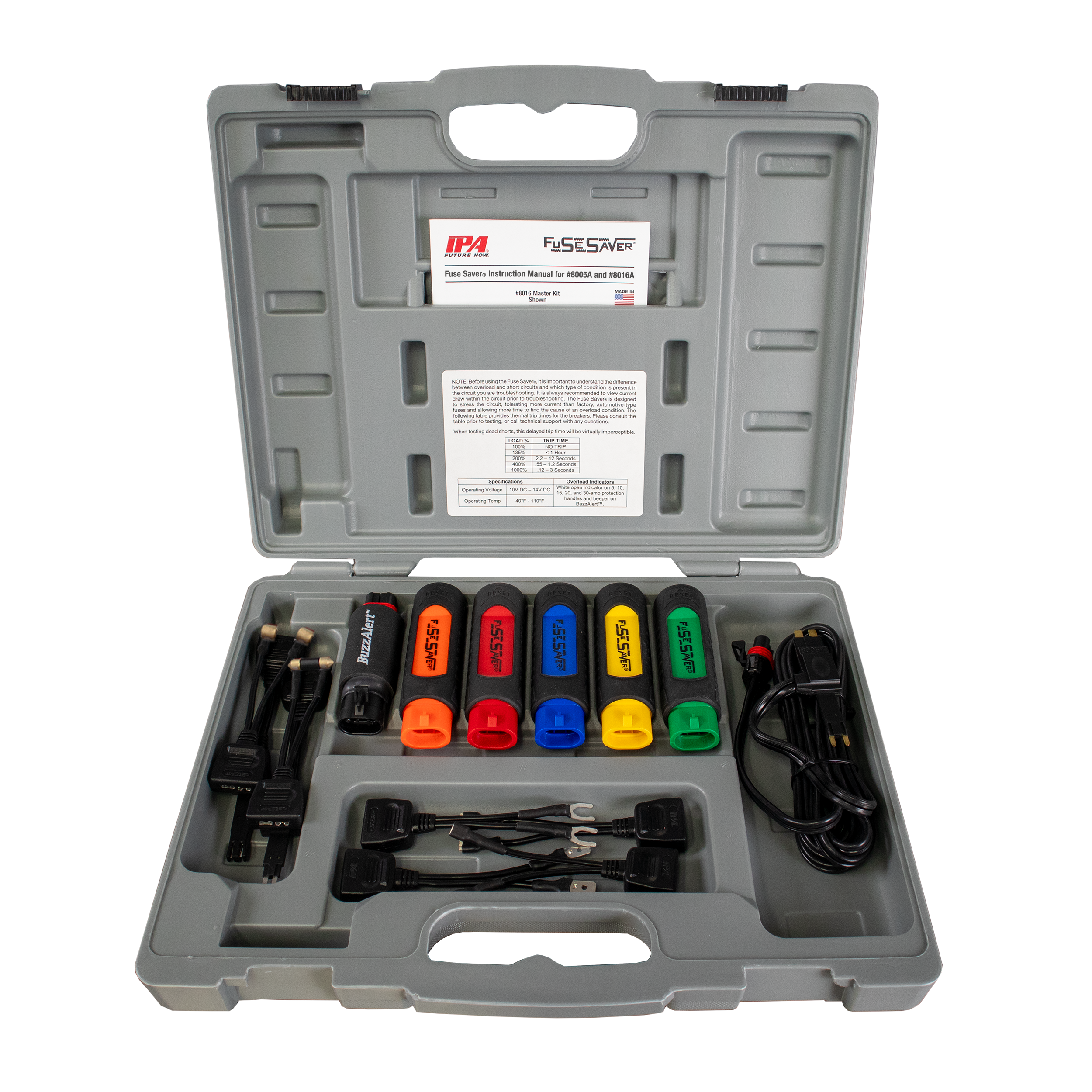

The Fuse Saver® (2nd Gen) Master Kit – #8016A

• Five Resetting, Color-Coded Thermal Breaker Handles: 5 Amps (orange), 10 Amps (red), 15 Amps (blue), 20 Amps (yellow) and 30 Amps (green) • BuzzAlert Module • 8 Fuse Adapters • 10-ft. Cord with Dual ATC/ATO Connections • Custom Blow-Molded Case
