Purposely Built for Service Truck Boxes, Underbody and Side-Mount Tool Boxes

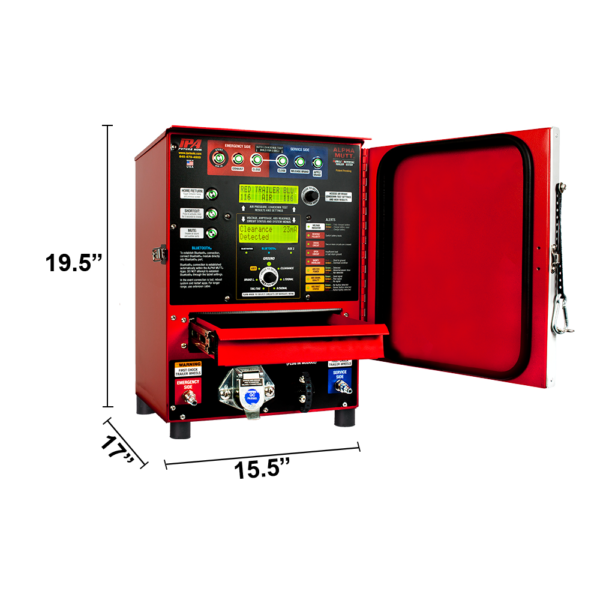

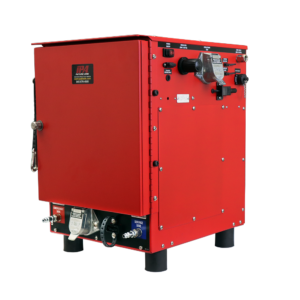

The #5610A Alpha MUTT® Service Truck Model an all-in-one, advanced diagnostic tester and inspection system for both vehicles and trailers. It saves time and money by providing mistake-free, inspections that are faster and more efficient than existing methods across all your locations. It’s build features anti-vibration feet with bolt-through design for bottom mounting to service-truck boxes. The soft-close drawer is built with custom foam cutout storage for remote control and Bluetooth® antenna and all ports are accessible with steel door closed. All stainless steel hardware and drill template included with tester for easy installation. Space-saving design: 16.5″ W x 21.5″ H x 19″ D

IPA® uses its own proprietary technology for conducting electrical, air brake and ABS testing along with full DOT inspections. Several models are available with expandable capabilities including ABS testing, air pressure sensors, cloud uploading and the option to instantly link all trailer inspections fleet wide for inspection-failure-cause analytics. The added convenience of a tablet provides inspection reports which eliminate the burden of time-consuming paperwork. Made proudly in the USA, each Alpha MUTT® features a rugged design that answers the call of fleets looking to enhance the speed and accuracy of trailer pm inspections.

Features and Benefits:

ELECTRICAL TESTING (12/24 Volt Operation)

• Automatic cross, open, overload and short fault detection
• Highly accurate digital ammeter with 1mA resolution
• Pulsar Mode allows for chasing down short circuits without blowing fuses
• Cable testing
• Ground failure detection: differentiates between wire and chassis ground
• Control lights by remote or tablet
• Detailed inspection report generated from auto-test function in under 60 seconds

AIR BRAKE TESTING

• Remote-controlled air brake activation
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Perform analog leak-down tests in service and emergency lines

ABS TESTING

• Real-time ABS software—features with integrated ECU sensor diagrams
• Reads and Clears Codes on Front Panel or via Tablet
• Displays diagnostic troubleshooting information
• Access ECU data: manufacturer, make, model, etc.

IPA®’s Diagnostic Software Suite

IPA®’s diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.

• Diagnostic Software Suite Available on #5610A-RT8 and #5611A-RT8 Models

Optimized for Extreme Weather Conditions

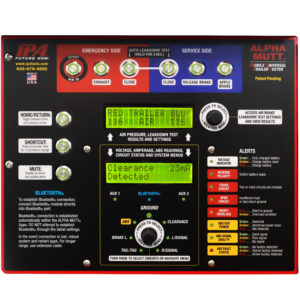

• Waterproof and sealed face label with illuminated stainless steel pushbutton switches
• Two dual-line, 32-character LCD screens optimized for outdoor use with backlighting for nighttime, sunlight readable for daytime, and wide-angle view Internal circuit board coated to protect from moisture and corrosion
• Weather-tight steel door to keep electronics and control panel safe in all conditions

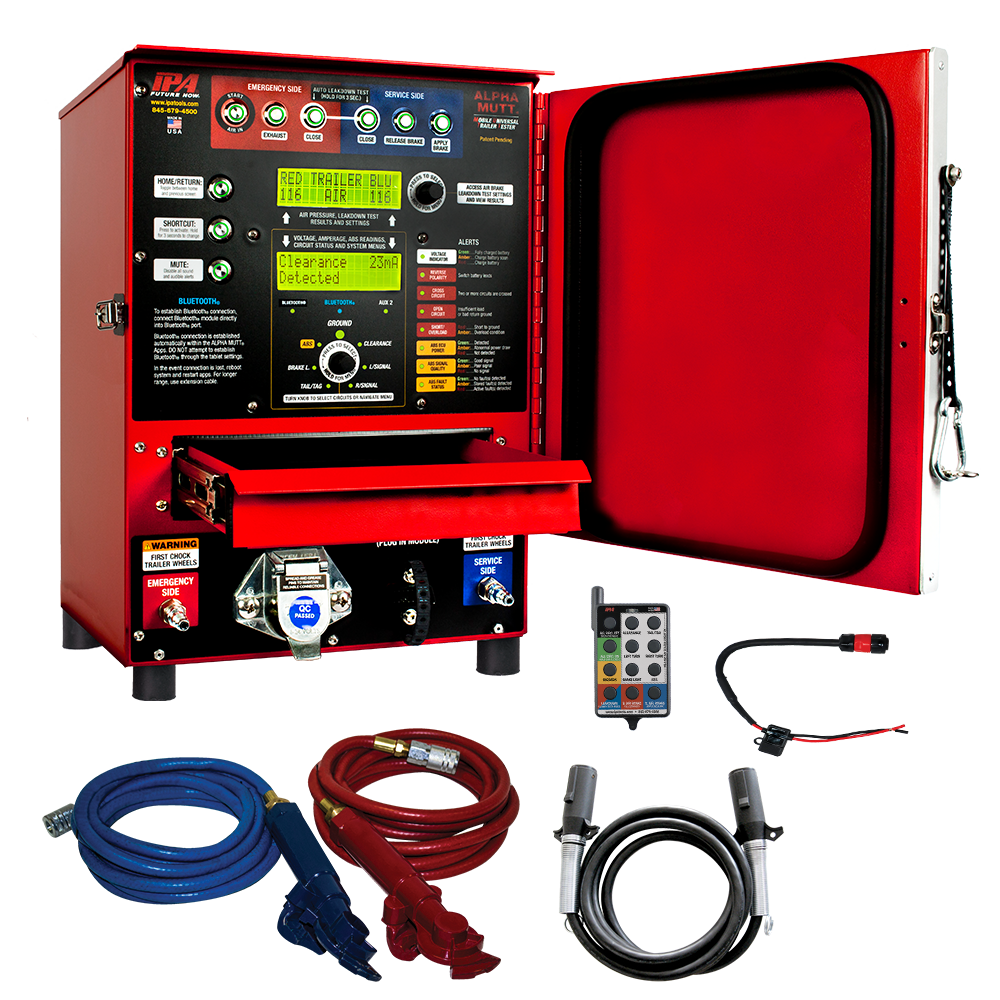

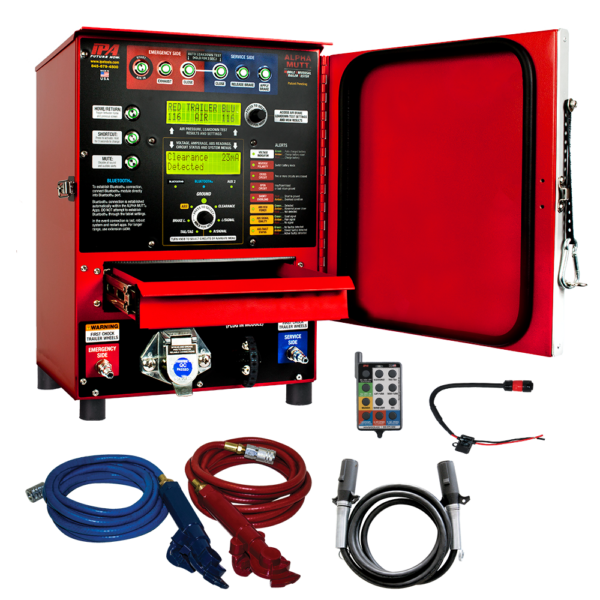

Includes:

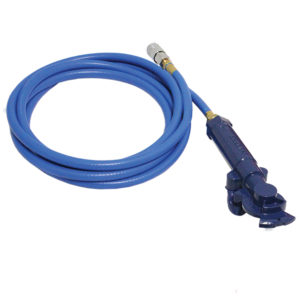

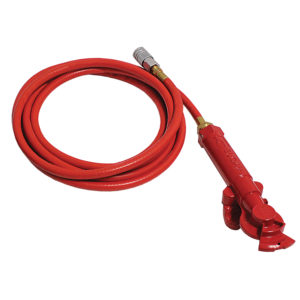

2nd Gen 12-Button Remote (#MUT2-RM12) • 20′ 7-Way Cable (#7900K-1-20AS) • 20′ Red Gladhand Hose with Handle (5600-20RED-AS) • 20′ Blue Gladhand Hose with Handle (5600-20BLUE-AS) • Power Cable (#5600-PWRCBL-AS)
