MUTT® Series
Mobile Universal Trailer Tester
The MUTT® series are heavy duty, all-in-one, mobile, advanced diagnostic tester and inspection system for both vehicles and trailers. It saves time and money while being simple and easy to use by providing mistake-free, paperless inspections that are faster and more efficient than existing methods across all your locations. IPA® uses its own proprietary technology and a custom software suite to achieve unparalleled accuracy and record keeping while conducting real-time electrical, air brake and ABS testing along with full DOT inspections.
Trailer inspections are being monitored more and more for proficiency to avoid falling behind on PM schedules and annual inspections. In fact, a poorly run trailer shop can be one of the largest contributors to hidden costs a fleet or service provider can have. IPA® manufactures an industry-leading, professional-grade trailer tester for every type of need.
Several MUTT® models are available with expandable capabilities including ABS diagnostics, air pressure sensors, trailer light testers, cloud uploading and the option to instantly link all trailer inspections fleet wide for inspection-failure-cause analytics.
MUTT® In Detail

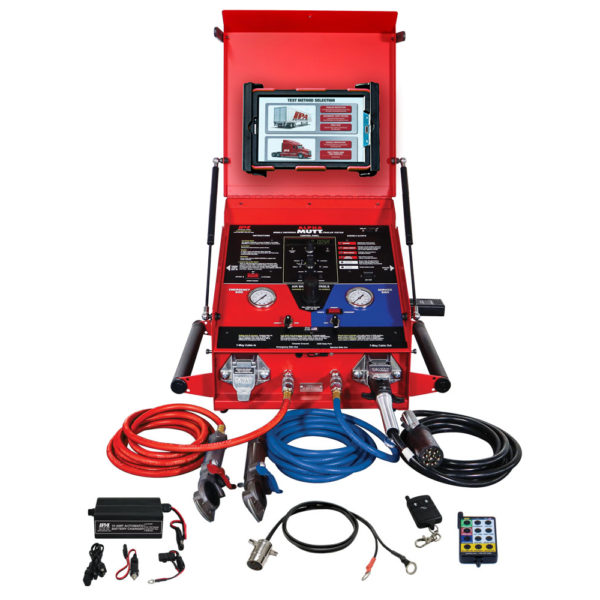

-#5700 Alpha MUTT® Advanced Diagnostic Trailer Tester with Detailed Reporting Capabilities
- Electrical Testing (12/24 Volt Operation)
- Automatic cross, open, overload, short and ground
fault detection - Highly accurate digital with 5mA resolution
- Chase down short circuits with Pulsar® Model
- Cable testing
- Ground failure detection: differentiates between wire
and chassis ground - Detailed inspection report generated from auto-test
report function in under 60 seconds
- Automatic cross, open, overload, short and ground
- Air Brake Testing
- Tablet or remote-controlled air brake activation
- Real-time, repetitive brake activation to find
developing problems and verify leaking servo cans - Perform analog leak-down tests in service
and emergency lines
- ABS Testing
- Reads and clears codes on front panel or via tablet
- Displays diagnostic troubleshooting information
- Accesses ECU data; manufacturer, make, model, etc.
- No lag time when accessing ABS with IPA’s custom
diagnostic software
- A portable and water-resistant trailer light and brake tester that allows the user to perform all testing functions without the use of the vehicle. For 7-way spade, 6-way round and 4/5 pin trailer harnesses, the Light Ranger MUTT® simulates all electrical circuits of standard towing vehicles for boating, RV, landscaping, hunting and similar type light-duty trailers. Included with each tester is a 500mA Battery Charger and 3-Way Trailer Adapter.
- Tests 7-way spade (flat), 6-way round pin and 4/5 socket trailer-side harnesses
- Short circuit protection
- Turn signal simulation and power verification LED
- 500mA Battery Charger and 3-Way Trailer Adapter included
- Internal battery compartment (battery not included)
- Reduces guesswork and saves time by powering each trailer electrical circuit in 7-way round pin arrangements. This allows for proper verification of wiring configuration, ground integrity, short circuit/ overload conditions and turn signal simulation. The Heavy Ranger MUTT® features a water-resistant, rugged design, an internal battery compartment and an external 12V power port which can be used as a memory saver, test light supply or battery charge input.
- Tests 7-way round pin trailer-side harnesses
- Short circuit protection
- Turn signal simulation and power verification LED
- Includes 500mA Battery Charger
- Water-resistant case
- Internal battery compartment (battery not included)
#9007A SMART MUTT® ( 7-ROUND PIN )
- A Portable Unit for Commercial Trailer Lighting and ABS Remote-controlled, diagnostic trailer tester that tests lights and most ABS systems on commercial trailers using 7-way round connections.
- ELECTRICAL TESTING (12 Volt Operation)
- Power lights: Manually, All-On, Auto Scan, or Remote Control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Pulsar® mode allows diagnostic repair
- Advanced trailer wiring diagnostics
- Amperage readout and range (0-20 amps)
- Cable testing
- Ground failure detection: differentiates between wire and chassis ground ABS TESTING
- Access ABS blink codes
- Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems) REMOTE CONTROL
- Remote control included tests all trailer electric circuitry, 200+ ft. range
- Sync multiple (12) remotes to one unit
#9004A Smart Mutt (7-Flat- Pin)
- A Portable Unit for the Professional Service Shop for Light-Duty Trailer Lighting and Electric Brakes Built to facilitate a one-man testing operation, the Smart MUTT ® reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. This unit places a load on the trailer’s electrical circuits to verify proper lighting function. The Smart MUTT® is designed to be used on 7-way flat, 6-way round, and 4/5 pin connections.
- ELECTRICAL TESTING (12/24 Volt Operation)
- Power lights and electric brakes: Manually, All-On, Auto Scan, or Remote Control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
- Trailer wiring and circuit testing
- Amperage readout and range (0-20 amps) REMOTE CONTROL
- Remote control allows for one-man testing from 200+ ft. range
- Sync multiple (12) remotes to one unit
#9007M Mobile Smart Mutt (7 Round Pin)
- With Pulsar® Mode makes trailer testing a one-man operation and allows you to test all trailer electrical systems in a fraction of the time while reducing guesswork that could lead to expensive road calls and citations. #9007M (7-ROUND PIN TRAILER TESTER) Remote-Controlled, Diagnostic Trailer Tester for Commercial Trailer Lights and ABS
#9004M Mobile Smart Mutt (7 Flat Pin)
- Remote-Controlled, Mobile Diagnostic Trailer Tester for Light-Duty Trailer Lights and Electric Brakes. The Mobile Smart MUTT® is a portable, electronic trailer tester that instantly tests lights and electric brakes on light-duty type trailers (7 flat, 6 round, 5 and 4 pin).
#9008-SE SUPER MUTT® TRAILER TESTER Commercial Diagnostic Trailer Tester Base Model (7 Round Pin)
#9008-DL SUPER MUTT® TRAILER TESTER Pro Edition Commercial Diagnostic Trailer Tester (7 Round Pin)
- ELECTRICAL TESTING (12/24 Volt Operation)
- Power lights: Manually, All-On, Auto Scan, or Remote Control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Pulsar® mode allows diagnostic repair
- Advanced trailer wiring diagnostics
- Amperage readout and range (0-20 amps)
- Cable testing
- Ground failure detection: differentiates between wire and chassis ground
- ABS TESTING
- Access ABS blink codes
- Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems)
- AIR BRAKE TESTING
- Real time, repetitive brake activation to find developing problems and verify leaking servo cans
- Features an internal air regulator
- Performs leak down test on service and emergency lines
- Remote control allows observation of slackers to measure and adjust pushrods
- REMOTE CONTROL
-
- Remotely test all trailer electric circuity and air brake actuation with new 12-button remote
- (2) 3-button remote controls included test all trailer electric circuitry and air brake actuation, 200+ ft. range
- Sync multiple (12) remotes to one unit
MUTT® Tutorials
An overview of the Alpha MUTT®system
Learn how to perform a DOT or PM Inspection
Learn how to perform a report using the Alpha MUTT®app.
